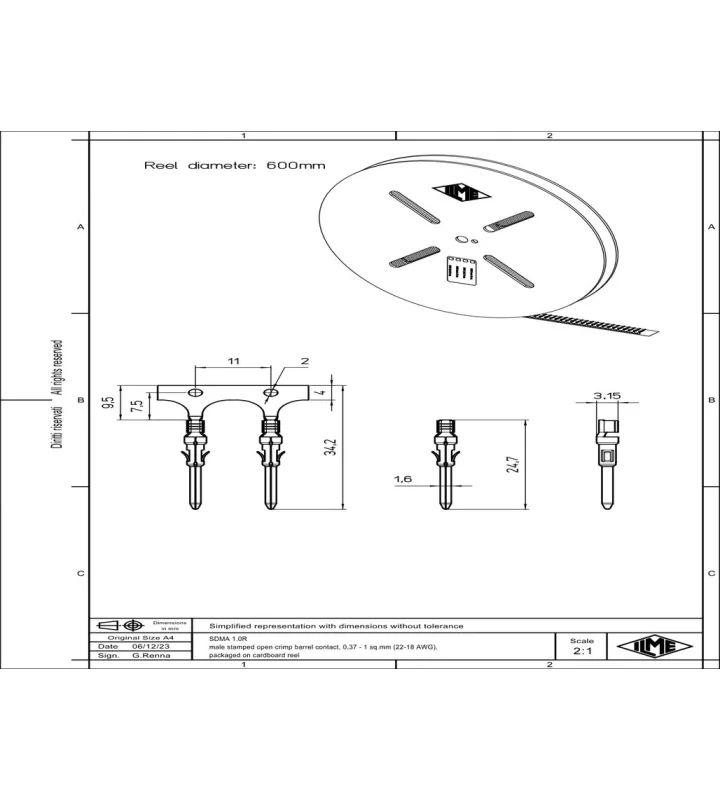

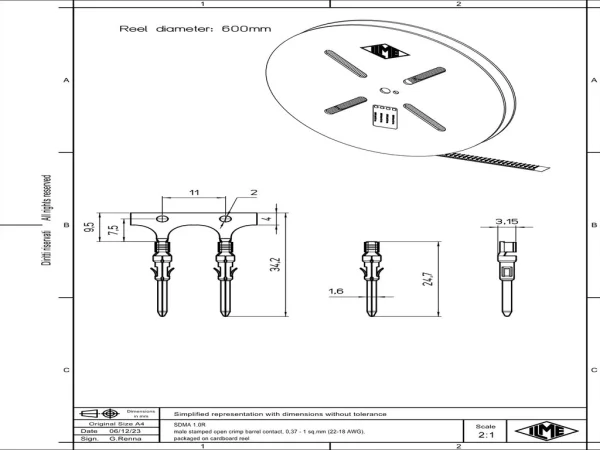

male contact, 0,37-1mm², silver, stamped crimp, 10A, series SD
SDMA 1.0R
Specifications
General characteristics
| Connection type | Stamped crimp |
|---|---|
| Contact type (gender) | Male |
| Min. Cross section | 0.37 mm² |
| Max. Cross section | 1 mm² |
| AWG size | 22 - 18 |
| Diameter male contact | 1.6 mm |
Electrical parameters
| Max. rated current | 10 A |
|---|
Material
| Material contact | Copper alloy |
|---|---|
| Plating of contact | Silver |
