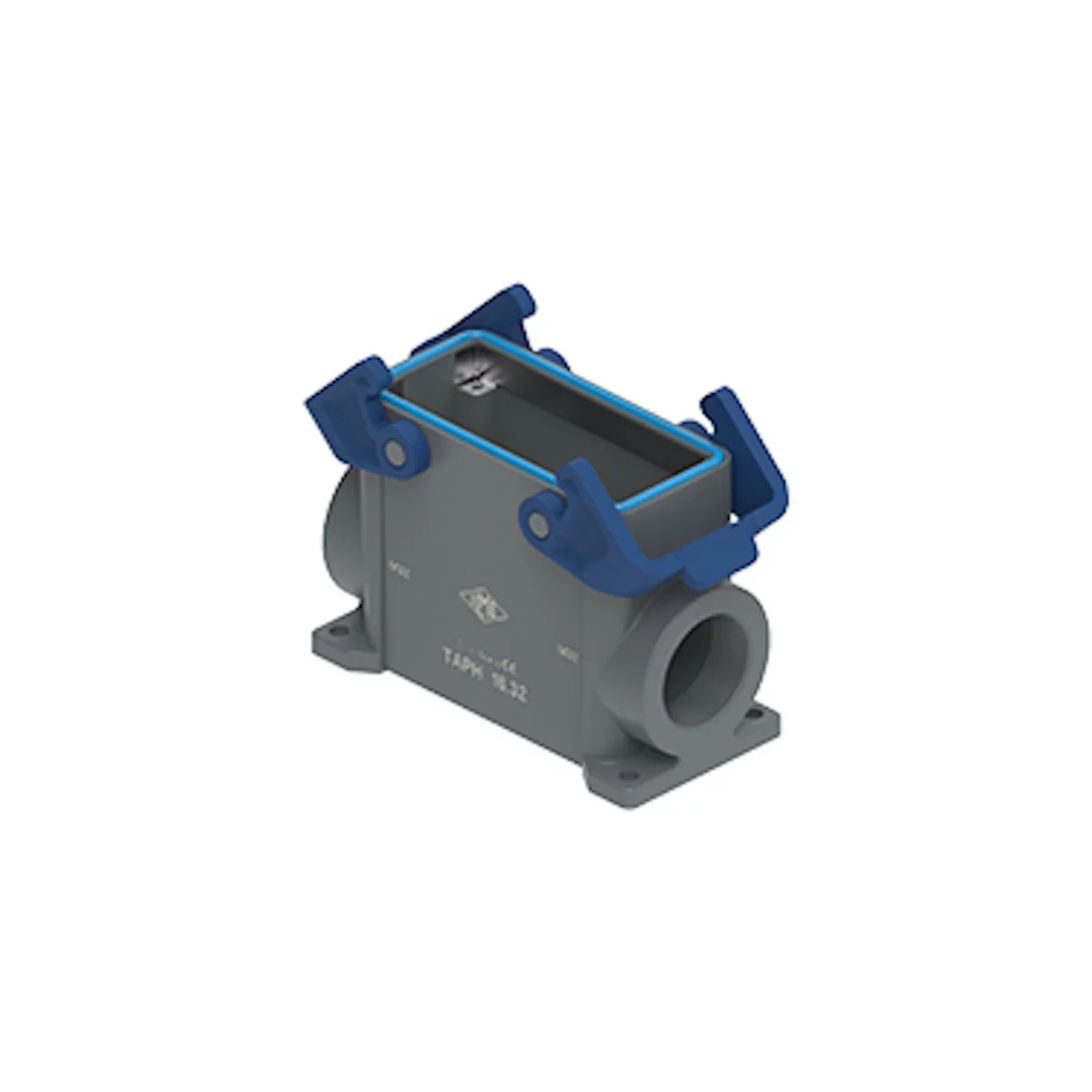

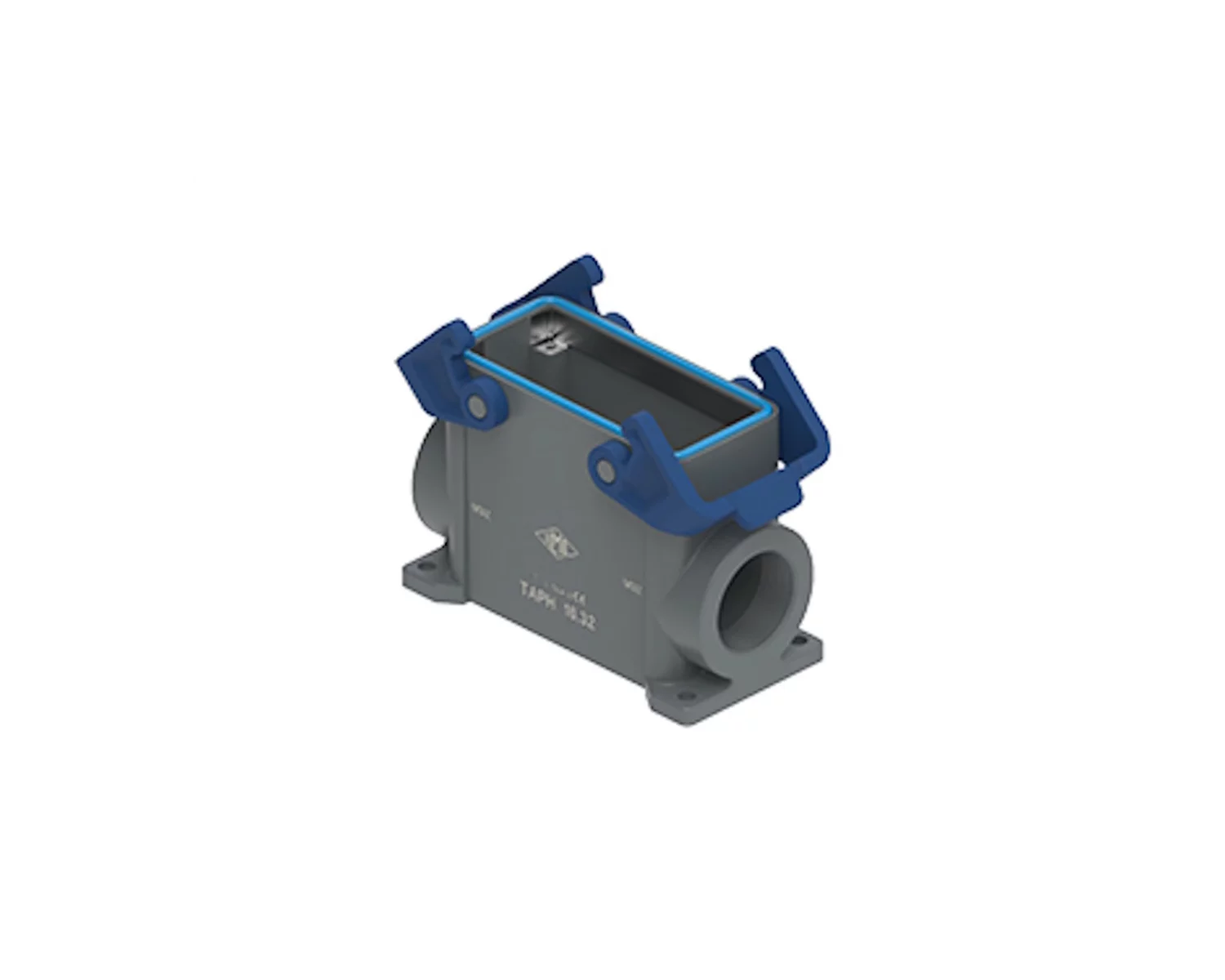

surface mounting housing, high, size 77.27, T-TYPE C plastic, 2 levers, 1xM32 side, PE-jumper

TAPC 16.32B

Add the desired standard inserts to fully configure your connector.

Enclosure type	Surface mounting housing
Size	77.27
Enclosure series	T-TYPE /C
Closing type	With 2 levers
Locking mechanism	Double locking levers
Protection degree	IP66 / IP69
Ambient lower temperature	-50 °C
Ambient upper temperature	70 °C
Operation lower temperature	-50 °C
Operation upper temperature	70 °C
Cable entry type	side cable entry
Cable entry size	M32
Position cable feed	Side entry

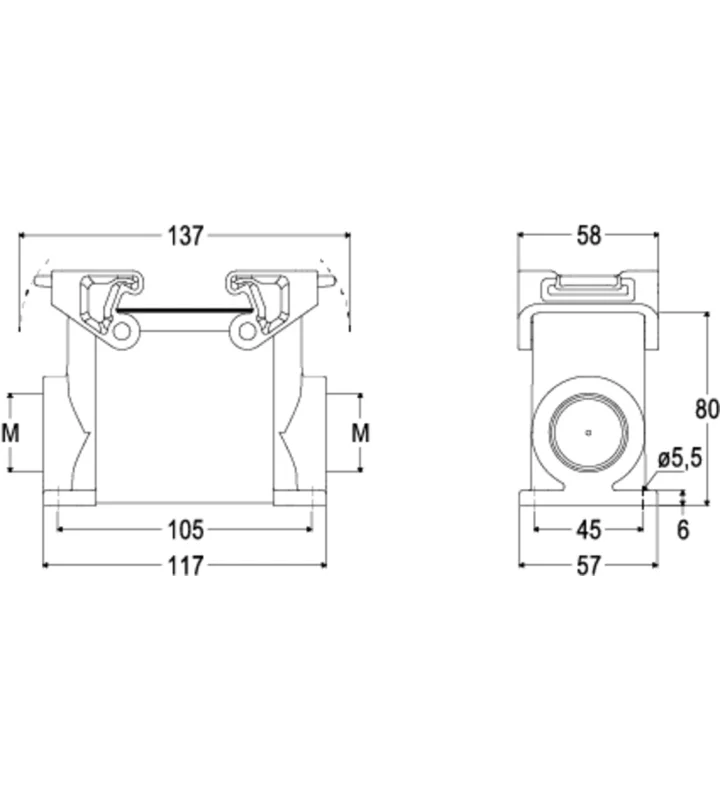

Height	80 mm
Width	45 mm
Length	105 mm

Material housing	Thermoplastic
Coating housing	Uncoated
Inflammability class of insulation material acc. with UL94	V0
