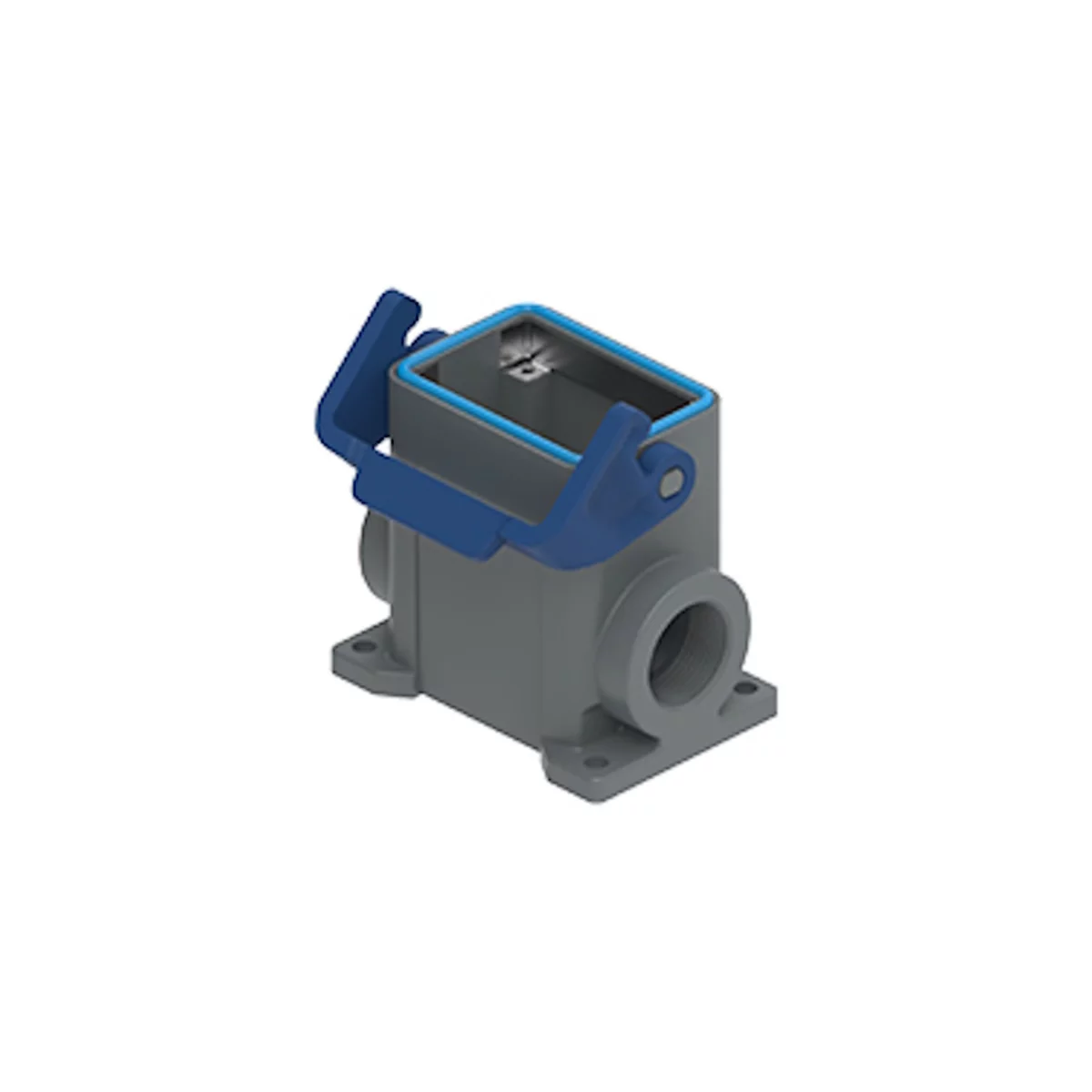

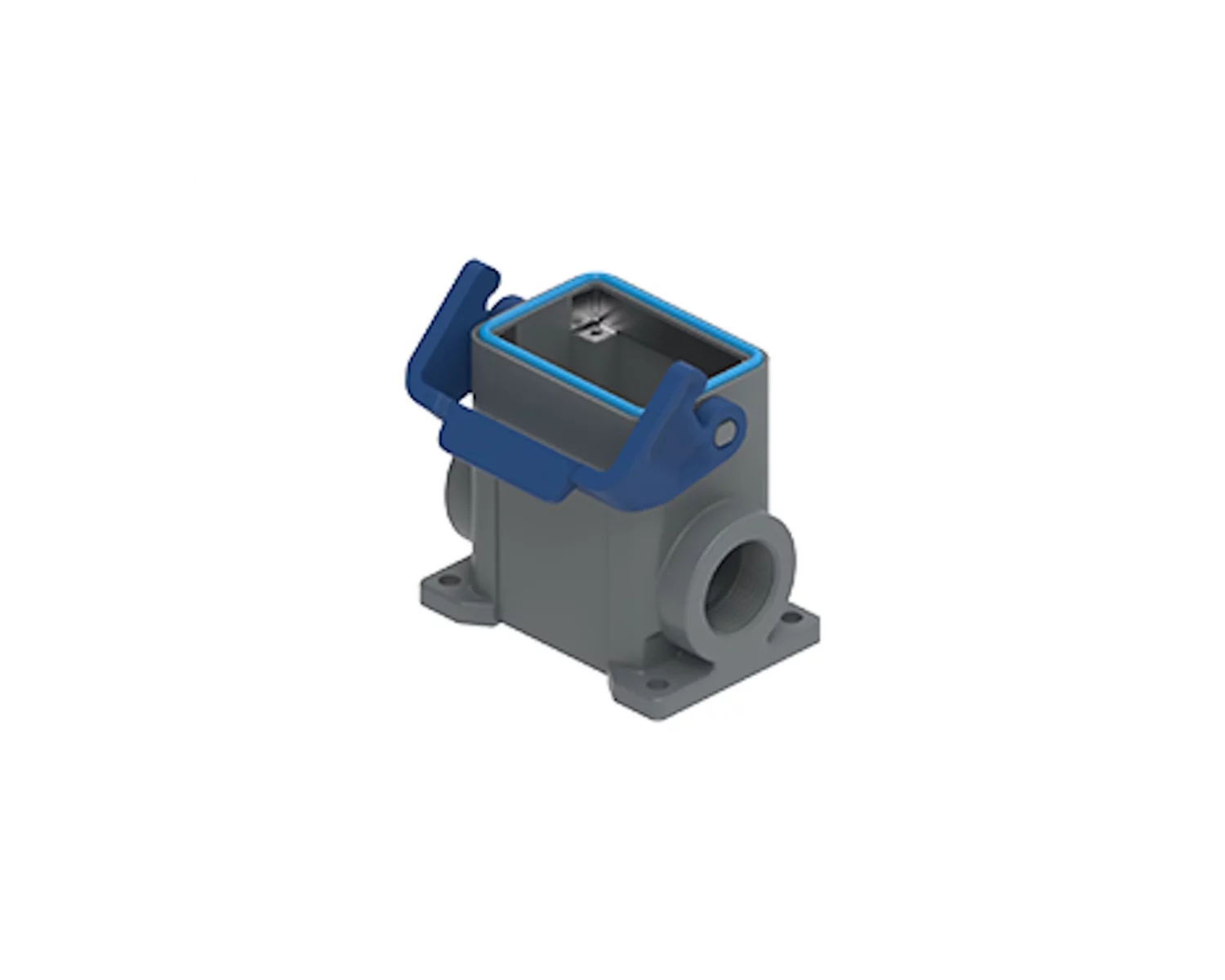

surface mounting housing, high, size 44.27, T-TYPE H plastic, 1 lever, 1xM25 side, PE-jumper

TAPH 06L25B

Add the desired standard inserts to fully configure your connector.

Enclosure type	Surface mounting housing
Size	44.27
Enclosure series	T-TYPE /H
Closing type	With 1 lever
Locking mechanism	Single locking lever
Protection degree	IP66 / IP69
Ambient lower temperature	-40 °C
Ambient upper temperature	70 °C
Operation lower temperature	-40 °C
Operation upper temperature	70 °C
Cable entry type	side cable entry
Cable entry size	M25
Position cable feed	Side entry

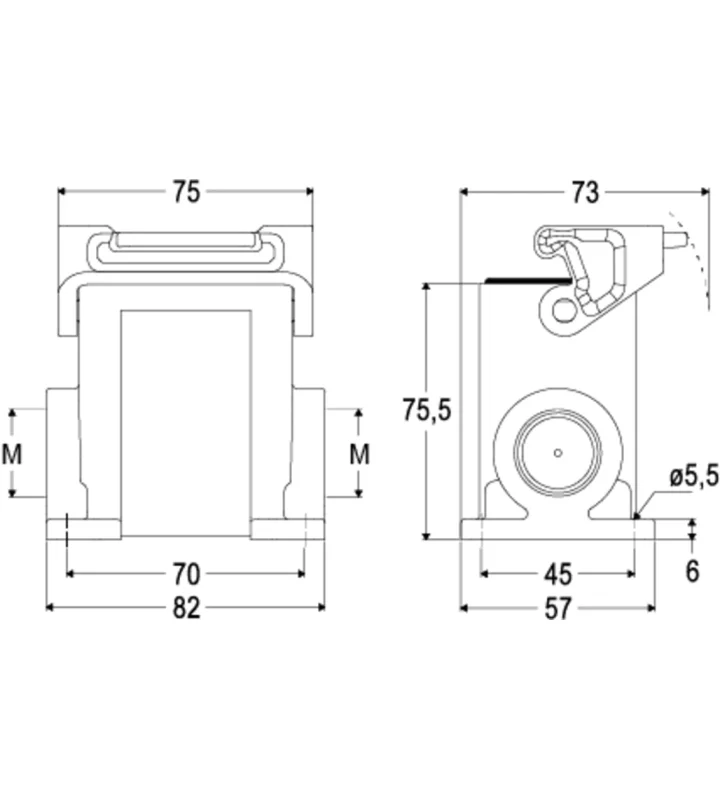

Height	75.5 mm
Width	45 mm
Length	70 mm

Material housing	Thermoplastic
Coating housing	Uncoated
Inflammability class of insulation material acc. with UL94	V0
