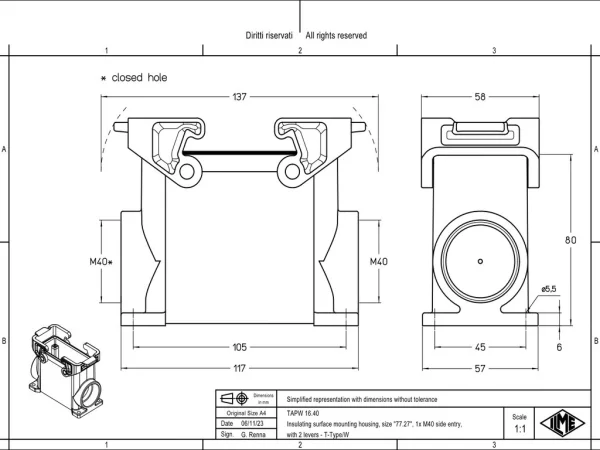

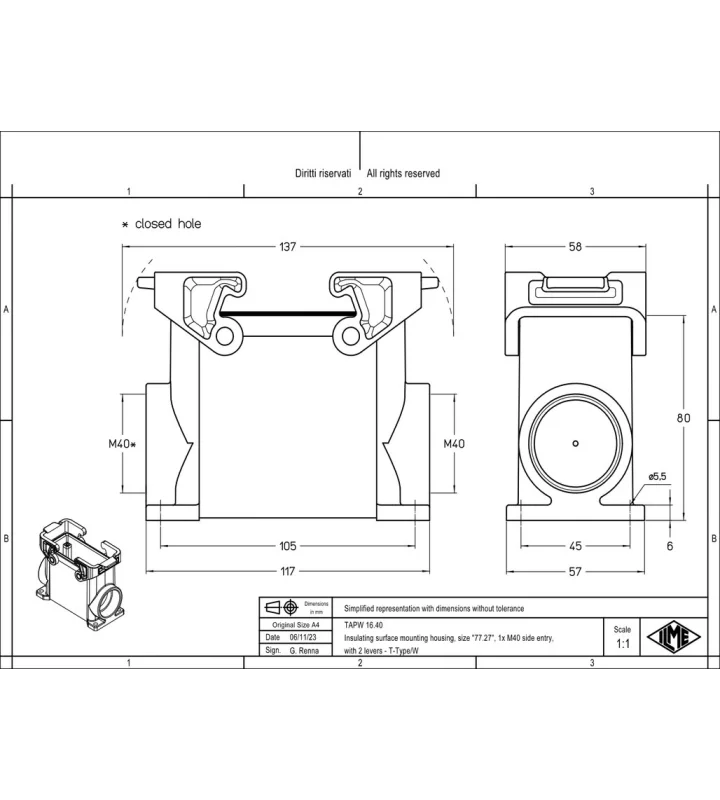

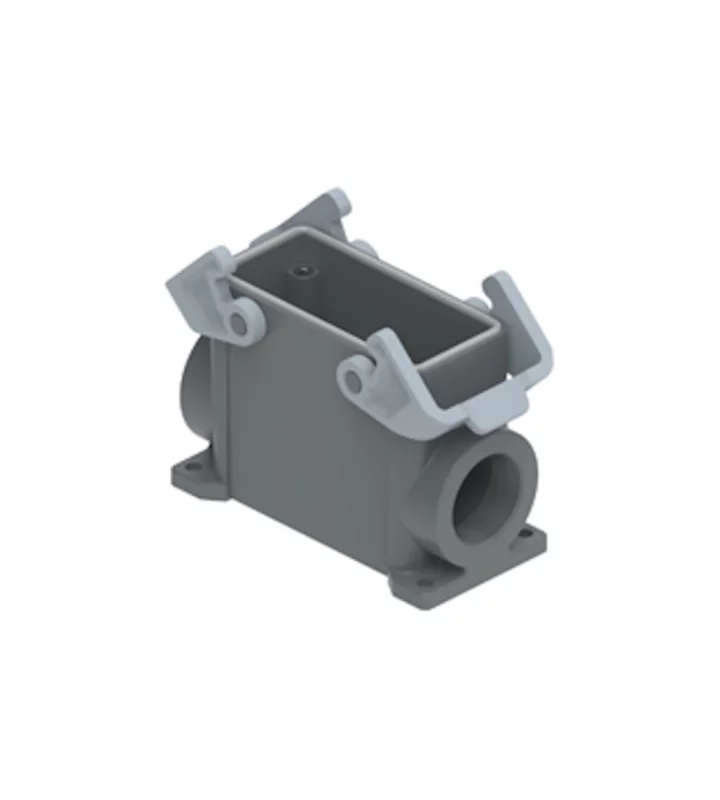

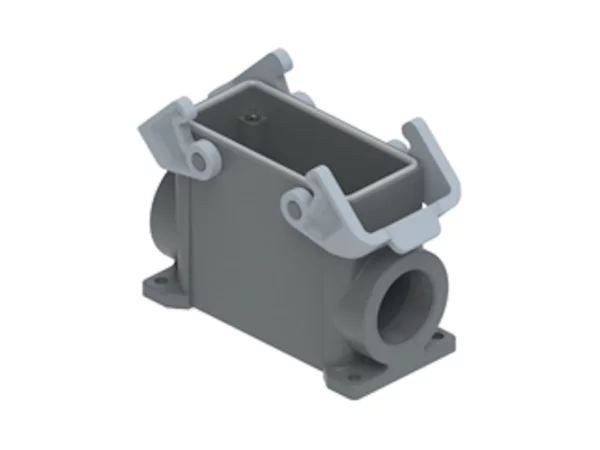

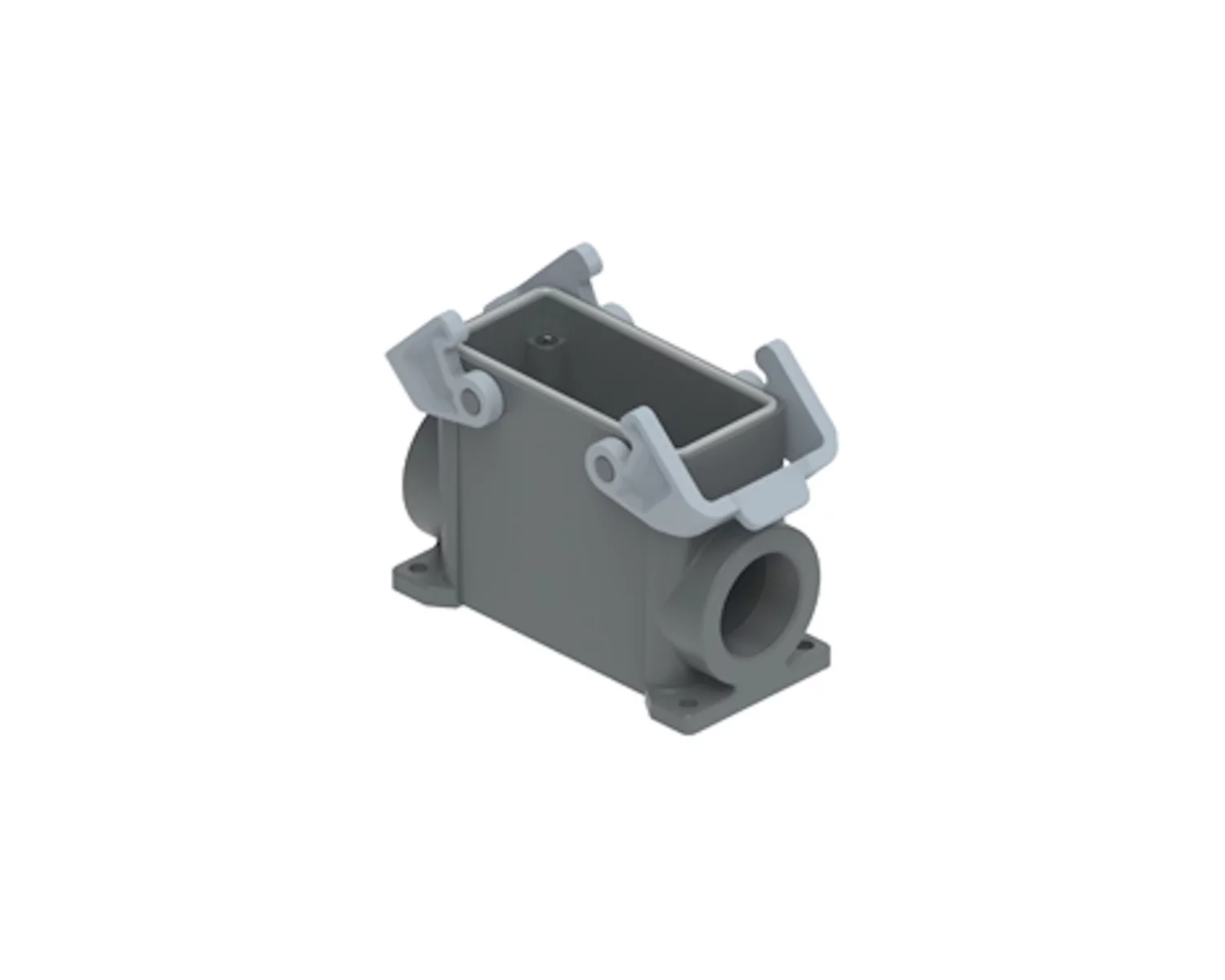

surface mounting housing, high, size 77.27, T-TYPE W plastic, 2 levers, 1xM40 side

TAPW 16.40

Add the desired standard inserts to fully configure your connector.

Enclosure type	Surface mounting housing
Size	77.27
Enclosure series	T-TYPE /W
Closing type	With 2 levers
Locking mechanism	Double locking levers
Protection degree	IP66 / IP69
Ambient lower temperature	-40 °C
Ambient upper temperature	90 °C
Operation lower temperature	-40 °C
Operation upper temperature	90 °C
Cable entry type	side cable entry
Cable entry size	M40
Position cable feed	Two-sided
Height	80 mm
Width	57 mm
Length	117 mm

Material housing	Thermoplastic
Coating housing	Uncoated
Inflammability class of insulation material acc. with UL94	V0
Extra information	Corrosion resistant,UV resistant,With interlocking device
