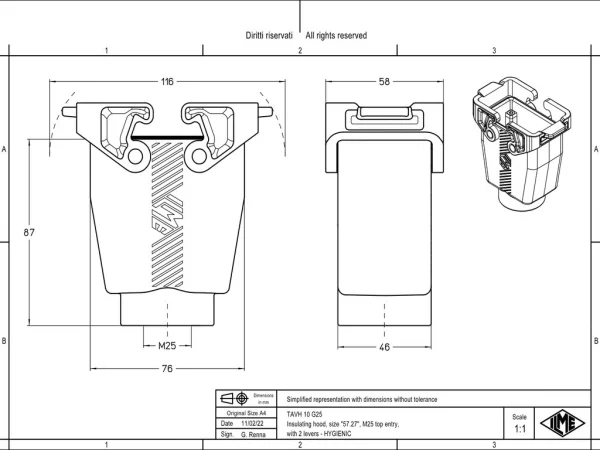

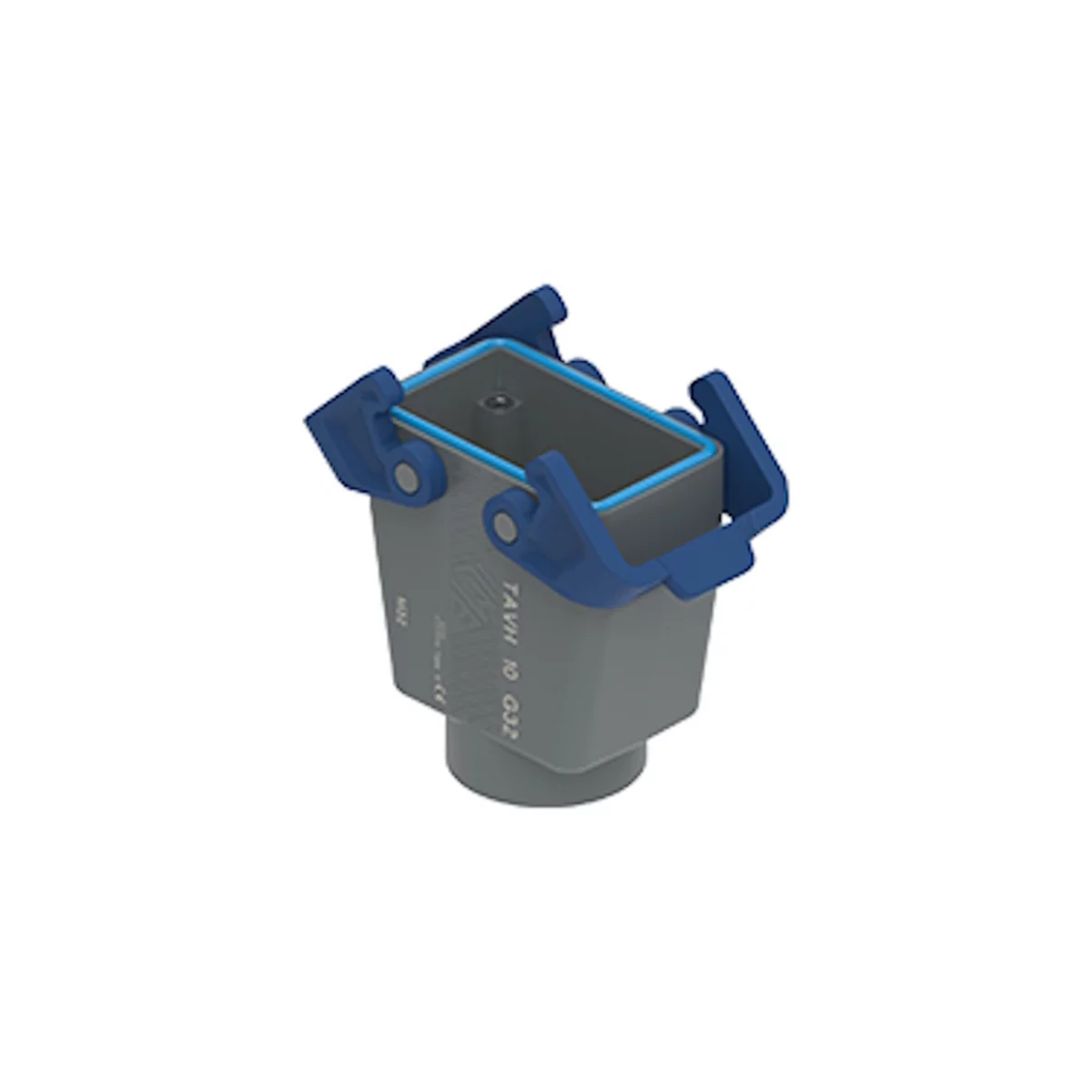

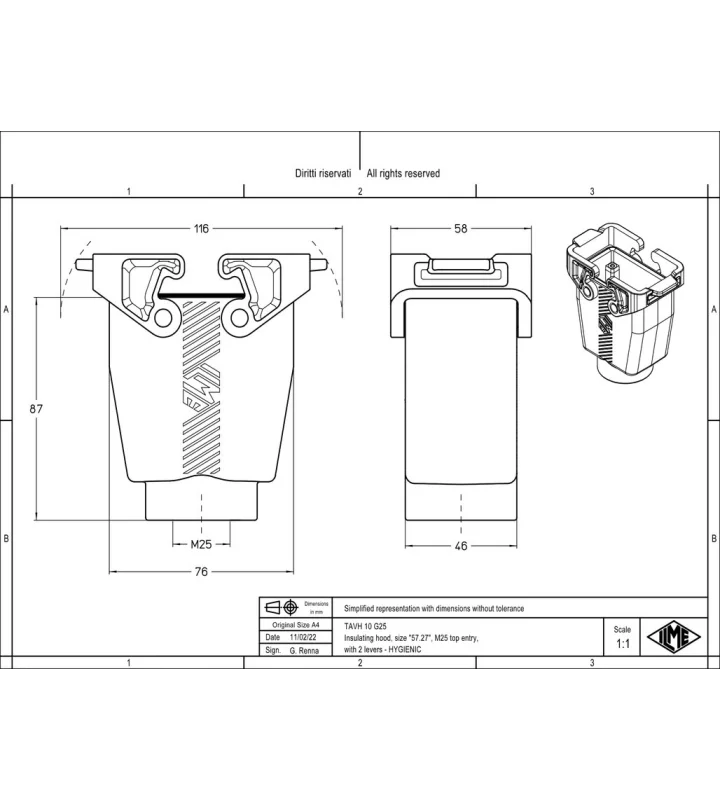

hood, high, size 57.27, T-TYPE /H plastic, 2 levers, 1xM25 top
TAVH 10 G25
Continue assembling your connector
Add the desired standard inserts to fully configure your connector.
Specifications
General characteristics
| Enclosure type | Hood |
|---|---|
| Size | 57.27 |
| Enclosure series | T-TYPE /H |
| Closing type | With 2 levers |
| Locking mechanism | Double locking levers |
| Protection degree | IP66 / IP69 |
| Ambient lower temperature | -40 °C |
| Ambient upper temperature | 70 °C |
| Operation lower temperature | -40 °C |
| Operation upper temperature | 70 °C |
| Cable entry type | top cable entry |
| Cable entry size | M25 |
| Position cable feed | Top entry |
| Height | 87 mm |
| Width | 46 mm |
| Length | 76 mm |
Material
| Material housing | Thermoplastic |
|---|---|
| Coating housing | Uncoated |
| Inflammability class of insulation material acc. with UL94 | V0 |
| Extra information | Corrosion resistant,UV resistant,With interlocking device |
