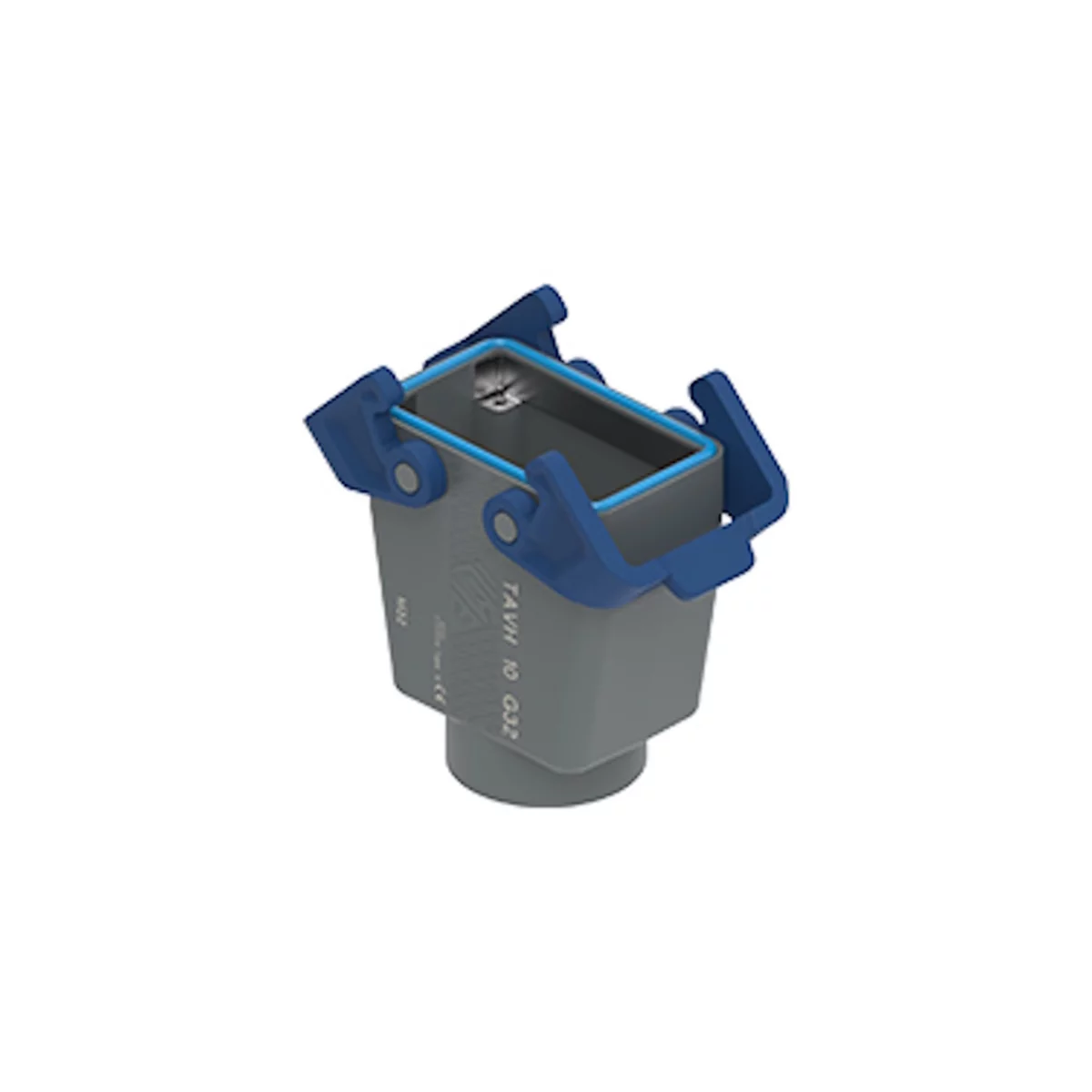

hood, high, size 57.27, T-TYPE /H plastic, 2 levers, 1xM32 top, PE-jumper

TAVH 10G32B

Add the desired standard inserts to fully configure your connector.

Enclosure type	Hood
Size	57.27
Enclosure series	T-TYPE /H
Closing type	With 2 levers
Locking mechanism	Double locking levers
Protection degree	IP66 / IP69
Ambient lower temperature	-40 °C
Ambient upper temperature	70 °C
Operation lower temperature	-40 °C
Operation upper temperature	70 °C
Cable entry type	top cable entry
Cable entry size	M32
Position cable feed	Top entry

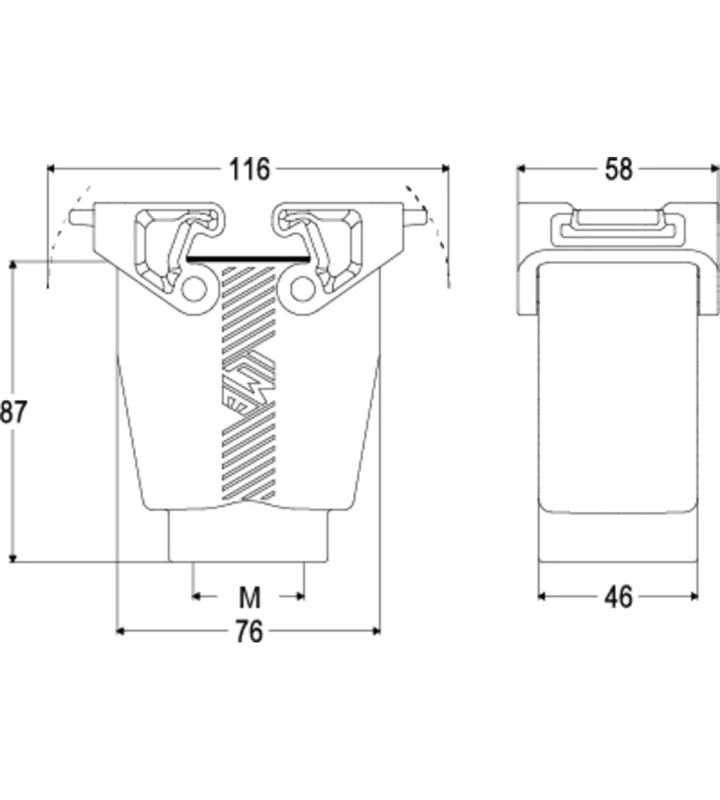

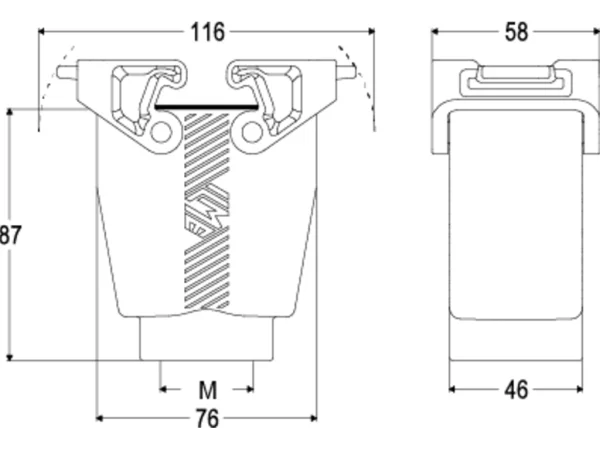

Height	87 mm
Width	46 mm
Length	76 mm

Material housing	Thermoplastic
Coating housing	Uncoated
Inflammability class of insulation material acc. with UL94	V0
