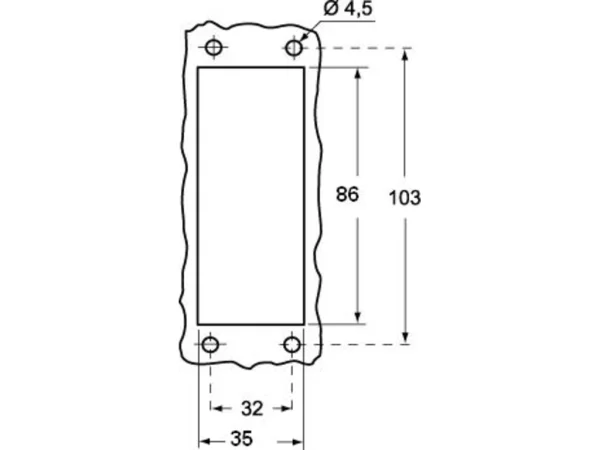

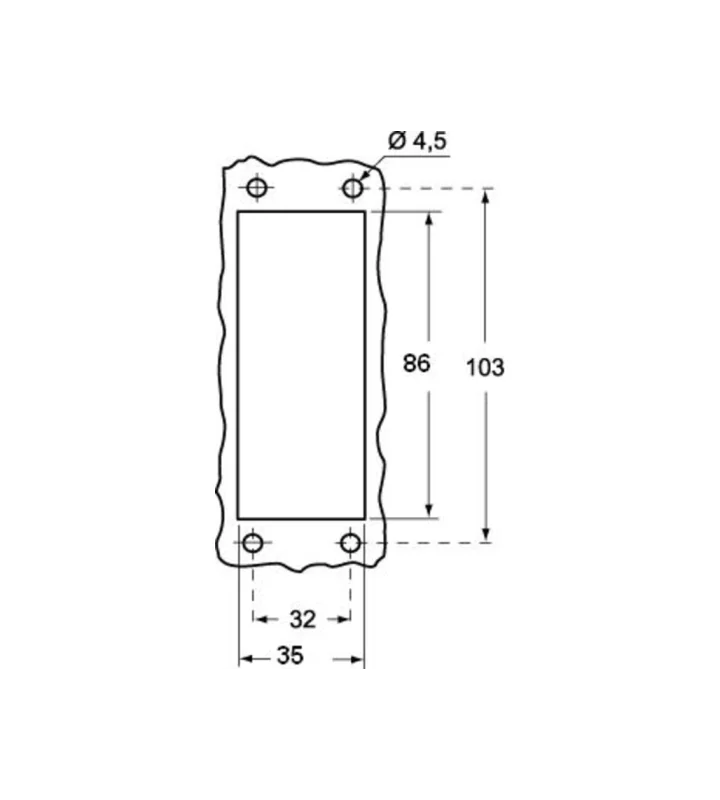

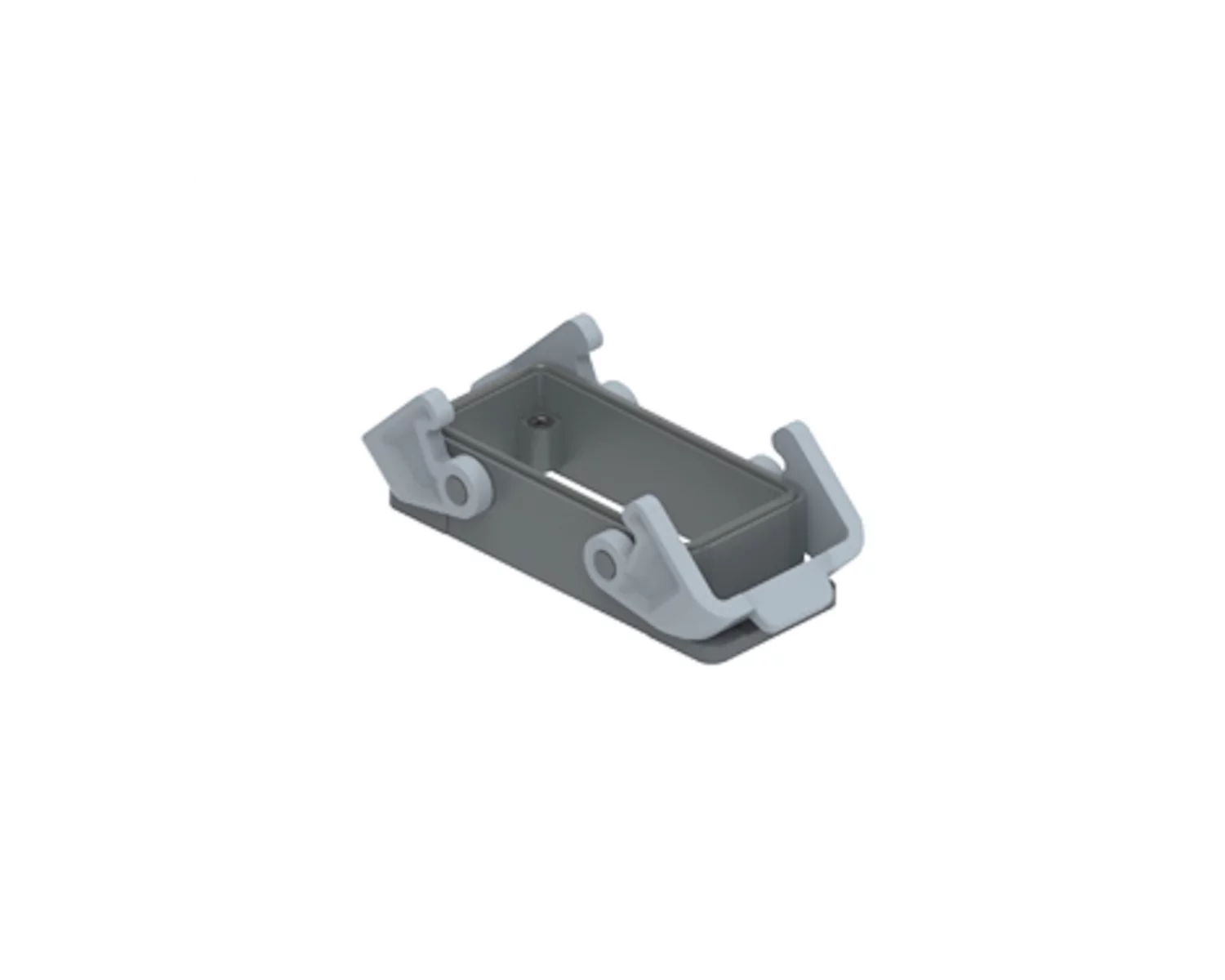

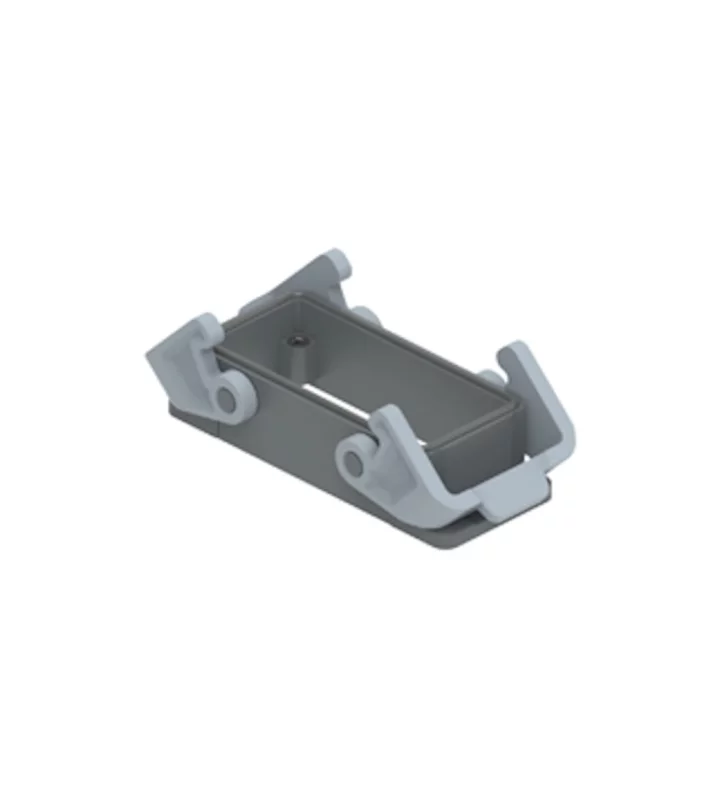

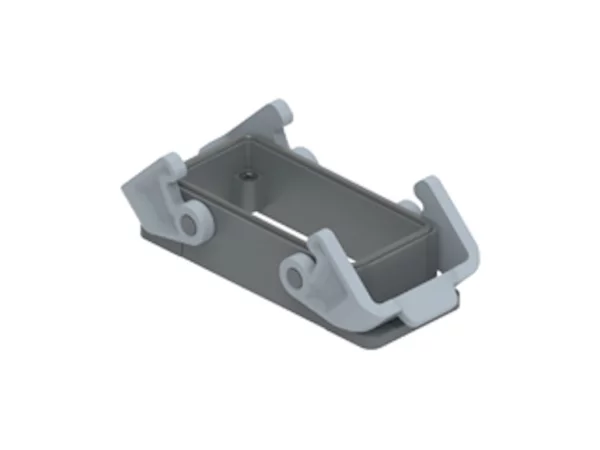

bulkhead mounting housing, size 77.27, T-TYPE plastic, 2 levers, PE-jumper

TCHI 16 B

Add the desired standard inserts to fully configure your connector.

Enclosure type	Bulkhead mounting housing
Size	77.27
Enclosure series	T-TYPE
Closing type	With 2 levers
Locking mechanism	Double locking levers
Protection degree	IP65
Ambient lower temperature	-40 °C
Ambient upper temperature	90 °C
Operation lower temperature	-40 °C
Operation upper temperature	90 °C
Cable entry type	without cable entry
Position cable feed	Without cable entry
Height	27 mm
Width	46.5 mm
Length	133.5 mm

Material housing	Thermoplastic
Coating housing	Uncoated
Inflammability class of insulation material acc. with UL94	V0
