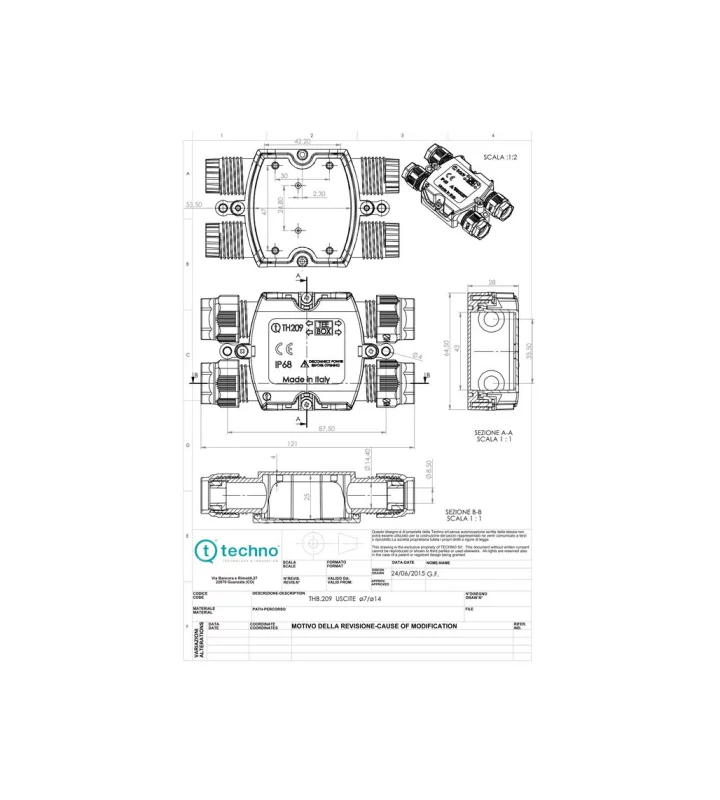

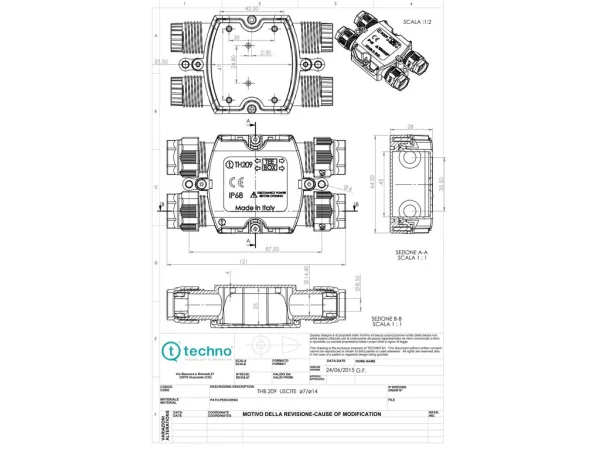

Junction box 3 ways without terminal block D7-13,5
IP66/IP68
THA.209.D1A
Continue assembling your connector
Add the desired accessories to fully configure your connector.
Specifications
General Characteristics
| Series | TEEBOX |
|---|---|
| Subseries | TH209 |
| Inner dimensions | 43 mm x 53.5 mm x 24 mm |
| Cable diameter min-max A | 7,0 -13,5 mm |
| Cable diameter min-max B | 7,0 -13,5 mm |
| Terminal block | TH026 / TH029 / TH032 / TH027 |
| Cable entries/exits | 3 ways |
| Protection degree | IP66/IP68 |
| Protection degree details | 0,5 bar (5 m / 3 h) |
| Lower temperature | -40 °C |
| Upper temperature | +125 °C |
| Max. temperature | T85 16 A |
| Standards | TEST REPORT EN60529:1991+A1:2000 IP54: 2.6 l/min 10 min IP68: 5 MT-PROOF 3 h IP66: 100 l/min 3 min EN60998-1:2004 heating resistance |
Material
| Body | PA66 UL94 V2 GWT 850°C black - grey RAL 7035 |
|---|---|
| Lock nuts | PA66 FV UL94 V0 GWT 960°C black - grey RAL 7035 |
| Grommets | TPE |
| Co-moulded seal of lid | SEBS |
| Fixing screws of lid | M3 x 12,0 mm inox stainless steel |
