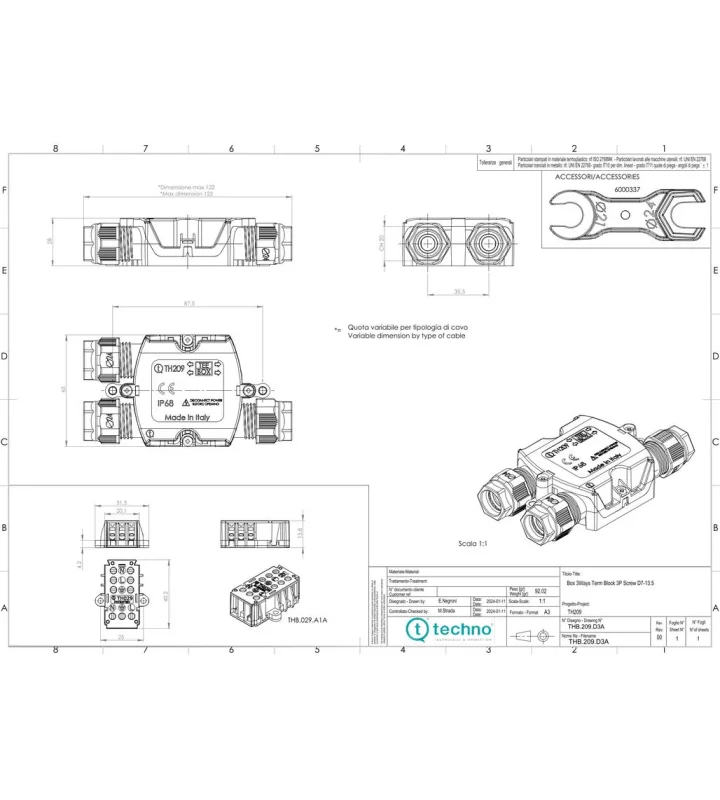

Junction box 4 ways
Screw IP66/IP68
3 connected cables
THB.209.D3A
Continue assembling your connector
Add the desired accessories to fully configure your connector.
Specifications
General Characteristics
| Series | TEEBOX |
|---|---|
| Subseries | TH209 |
| Number of contacts | 3 |
| Contact terminals | Screw |
| Cable section | 0,50 - 4,0 mm² |
| Min-max cable diameter | 7,0 - 13,50 mm |
| Cable entries/exits | 4ways |
| Protection degree | IP66/IP68 |
| Protection degree details | IP68 (5m/3h) |
| Max. temperature | T85 |
Electrical parameters
| Rated current | 24 A |
|---|---|
| Rated voltage | 450 V |
Material
| Body | PA66 GF UL94 V2 |
|---|---|
| Distributor and connector housing | PA66 GF UL94 V0 |
| Seals | TPE |
| Contact screw terminals | Brass |
| Screw | Steel |
| Fixing screws of lid | Steel |
