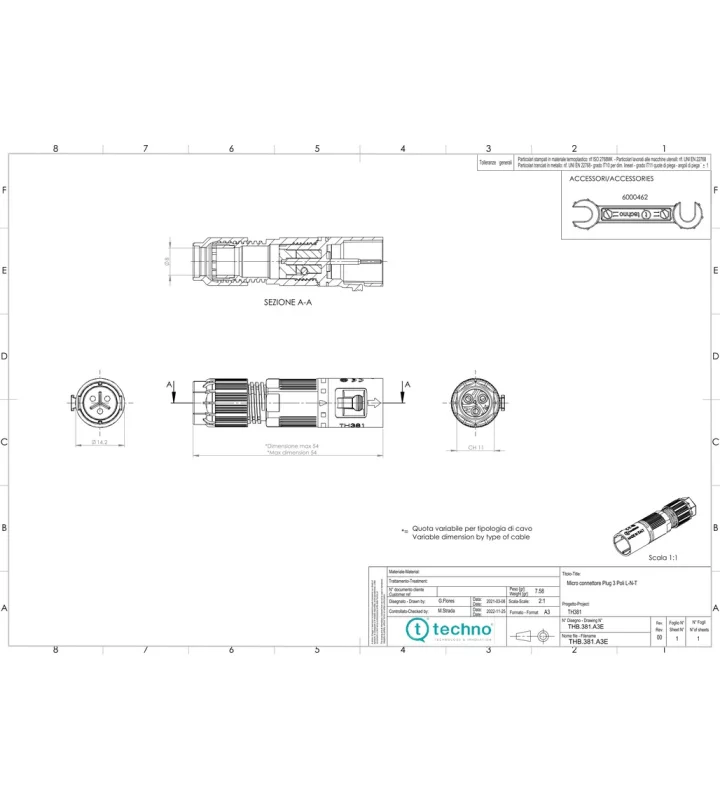

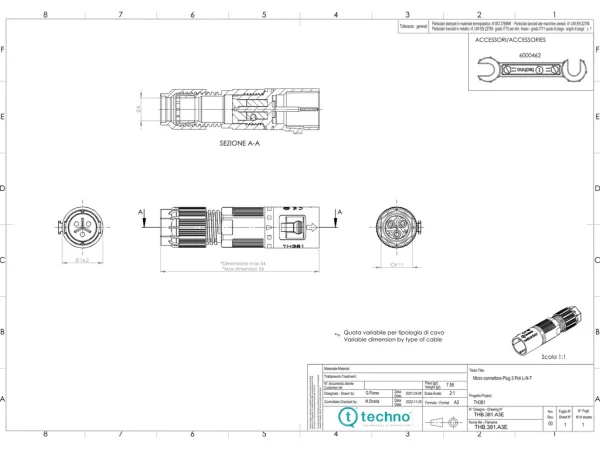

Micro Plug connector 3p Screw L-N-PE D7-8
IP66/IP68/IP69
With marking N & earth
THB.381.A3E
Continue assembling your connector
Add the desired accessories to fully configure your connector.
Specifications
General Characteristics
| Series | TEEPLUG |
|---|---|
| Subseries | TH381 |
| Number of contacts | 3 |
| Gender | Male |
| Contact terminals | Contact screw terminals for cable section < 1,0 mm² |
| Cable section | 0,25 - 1,0 mm² |
| Min-max cable diameter | 7,0 - 8,0 mm |
| Protection degree | IP66/IP68/IP69 |
| Protection degree details | 30m/1h |
| Lower temperature | -40 °C |
| Upper temperature | +125 °C |
| Pollution degree | 2 |
| Standards | EN 61984:2009 |
| Tracking index | PTI 175 |
Electrical parameters
| Rated current | 10 A |
|---|---|
| Rated voltage | 500 V |
| Impulse withstand voltage | 4 kV |
Material
| Impulse withstand category | II |
|---|---|
| Distributor and connector housing | PA66 GF UL94 V0 |
| Cable glands | PA66 GF UL94 V2 |
| Seals | TPE |
| Screw | Steel |
