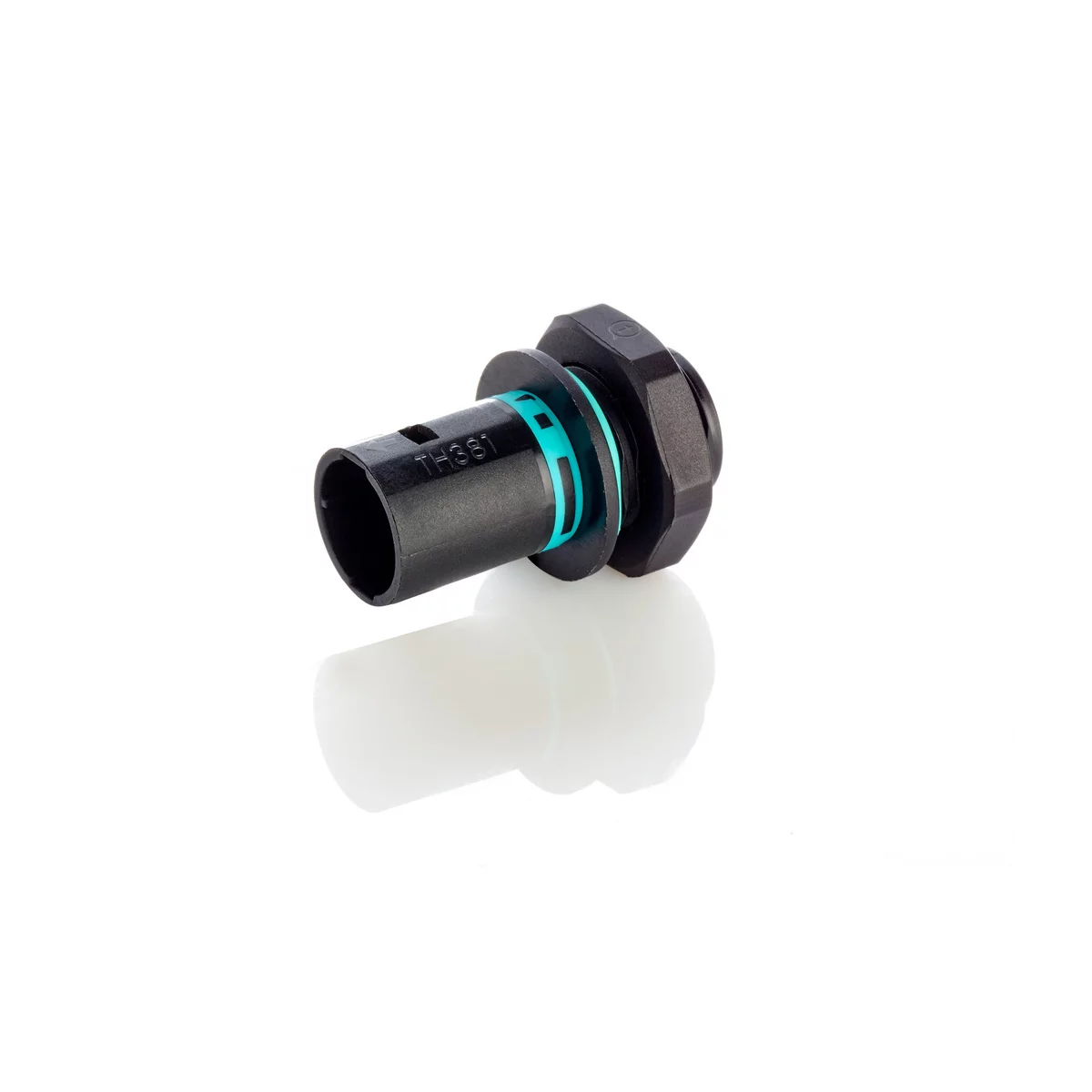

Mircro plug connector panel-mounted with saferlock M16
IP66/ IP68/IP69
THB.381.N2B
Continue assembling your connector
Add the desired accessories to fully configure your connector.
Specifications
General Characteristics
| Series | TEEPLUG |
|---|---|
| Subseries | TH381 |
| Number of contacts | 2 |
| Gender | Male |
| Contact terminals | Contact screw terminals for cable section < 1,0 mm² |
| Cable section | 0,25 - 1,0 mm² |
| Protection degree | IP66/IP68/IP69 |
| Protection degree details | IP68 30m/1h |
| Lower temperature | -40 °C |
| Upper temperature | +125 °C |
| Pollution degree | 2 |
| Standards | EN61984:2009 |
| Tracking index | PTI 175 |
Electrical parameters
| Rated current | 10 A |
|---|---|
| Rated voltage | 400 V |
| Impulse withstand voltage | 4 kV |
Material
| Impulse withstand category | II |
|---|---|
| Cable glands | PA66 GF UL94 V2 - GWT 850°C |
| Co-moulded seals | TPE-S |
| Contact screw terminals | Silver plated brass |
| Screw | zinc-plated |
