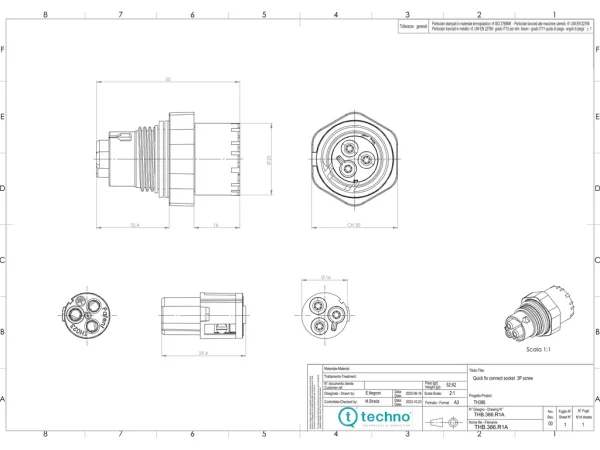

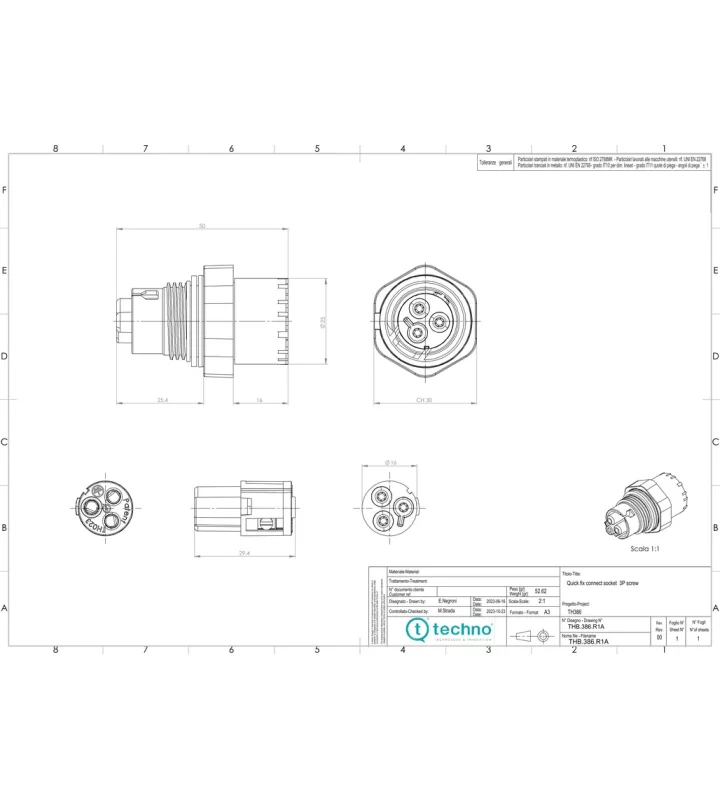

Mini socket connector panel-mounted
IP67
THB.386.R1A
Specifications
General Characteristics
| Series | TEEPLUG |
|---|---|
| Subseries | TH386 |
| Number of contacts | 3 |
| Gender | Female |
| Contact terminals | Screw |
| Cable section | 0,5 - 2,5 mm² |
| Protection degree | IP67 |
| Lower temperature | -40 °C |
| Upper temperature | +125 °C |
| Pollution degree | 2 |
| Max. temperature | T85 |
| Standards | EN61984:2001 EN60998-1:2004 EN60998-2-1:2004 EN60529:1991+A1:2000 |
| Tracking index | PTI 175 |
Electrical parameters
| Rated current | 16 A |
|---|---|
| Rated voltage | 400 V |
| Impulse withstand voltage | 4 kV |
Material
| Body | PA66 UL94 V2 |
|---|---|
| Impulse withstand category | II |
| Connector housing | PA66 GF UL94 V0 |
| Cable glands | PA66 UL94 V2 |
| Contact screw terminals | Brass |
| Standard/Piercing screws | Steel |
Variations
| Item number | Number of contacts | Contact terminals |
|---|---|---|
| THB.386.R2A | 2 | Contact screw terminals. For cable section < 1.0 mm² |
