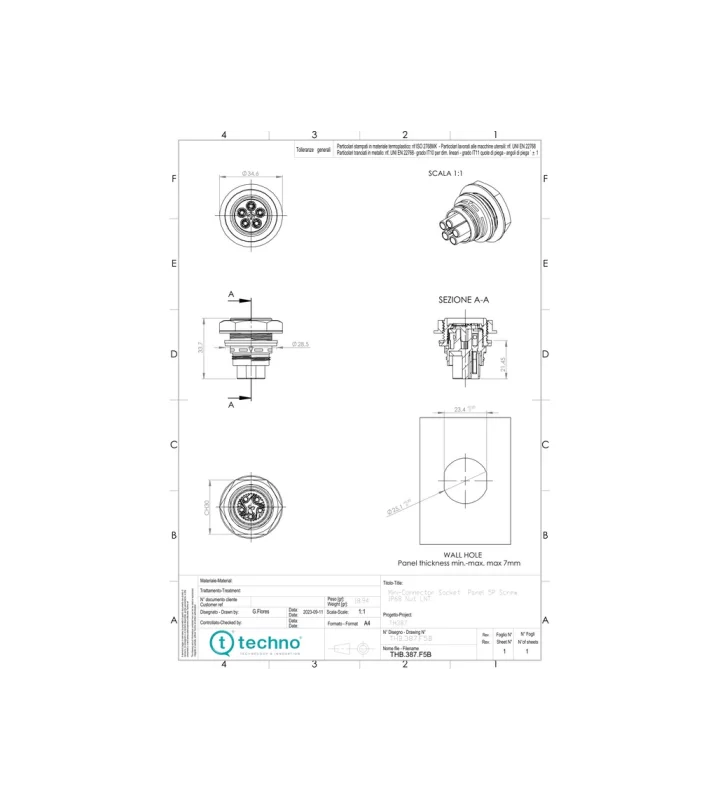

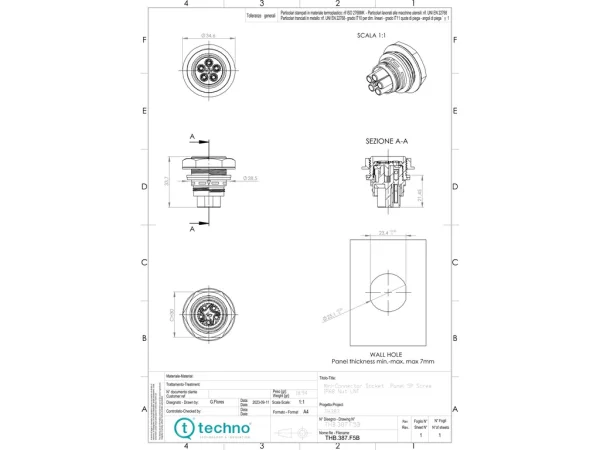

Mini socket connector panel-mounted
Screw M25, IP66/IP68
THB.387.F5B
Continue assembling your connector
Add the desired accessories to fully configure your connector.
Specifications
General Characteristics
| Series | TEEPLUG |
|---|---|
| Subseries | TH387 |
| Number of contacts | 5 |
| Gender | Female |
| Contact terminals | Screw |
| Cable section | 0,25 - 1,50 mm² |
| Protection degree | IP66/IP68 |
| Protection degree details | 3 bar (30m / 3h) |
| Lower temperature | -40 °C |
| Upper temperature | +125 °C |
| Pollution degree | 2 |
| Standards | EN61984:2009 |
| Tracking index | PTI 175 |
Electrical parameters
| Rated current | 17.5 A |
|---|---|
| Rated voltage | 500 V |
| Impulse withstand voltage | 4 kV |
Material
| Impulse withstand category | II |
|---|---|
| Cable glands | PA66 UL94 V2 |
| Grommets | TPE |
| Co-moulded seals | TPE |
| Contact screw terminals | Brass nickel plated |
| Standard/Piercing screws | M3 steel zinc plated |
