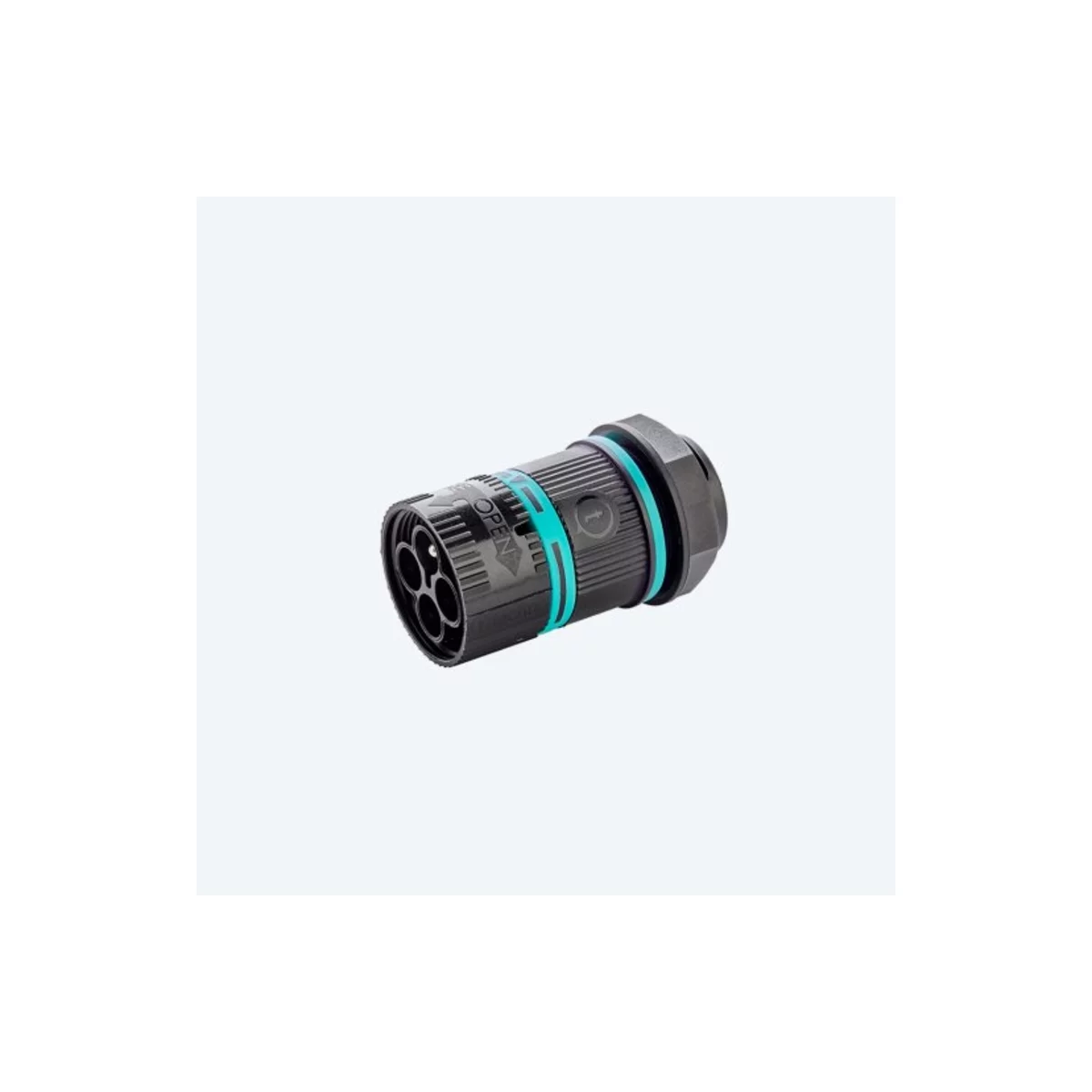

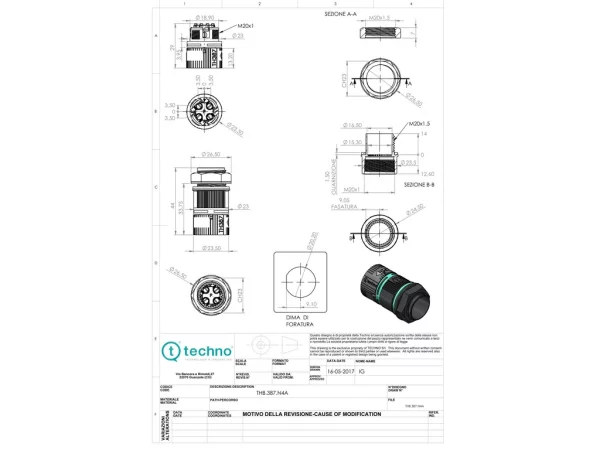

Mini plug connector panel-mounted, screw
M20 IP66/IP68

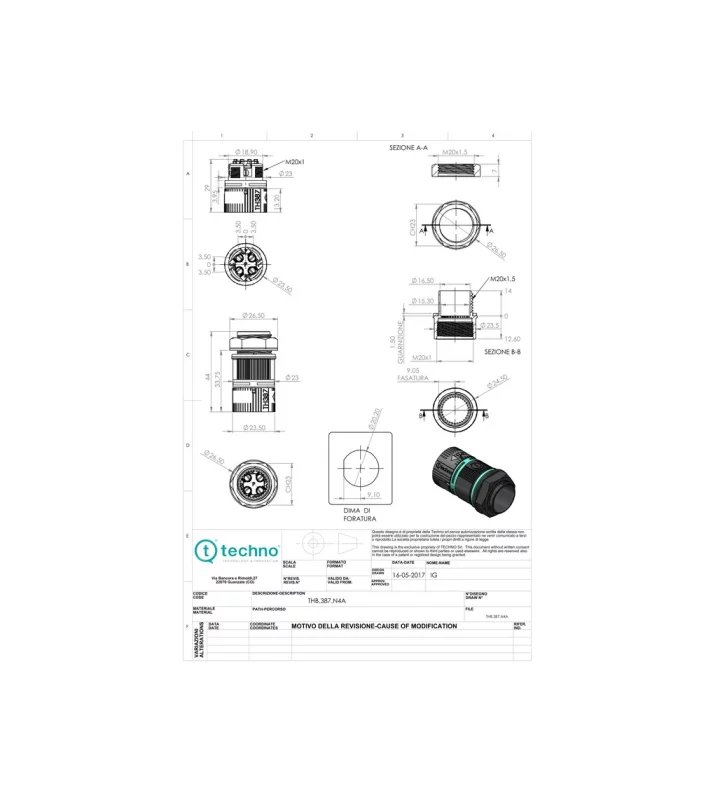

THB.387.N4A
Continue assembling your connector
Add the desired accessories to fully configure your connector.
Specifications
General Characteristics
| Series | TEEPLUG |
|---|---|
| Subseries | TH387 |
| Number of contacts | 4 |
| Gender | Male |
| Contact terminals | Screw |
| Cable section | 0,5 - 1,5 mm² |
| Protection degree | IP66/IP68 |
| Protection degree details | IP68 (30m/3h) |
| Lower temperature | -40 °C |
| Upper temperature | +125 °C |
| Pollution degree | 2 |
| Standards | EN61984:2009 |
| Tracking index | PTI 175 |
Electrical parameters
| Rated current | 17.5 A |
|---|---|
| Rated voltage | 500 V |
| Impulse withstand voltage | 4 kV |
Material
| Impulse withstand category | II |
|---|---|
| Connector housing | PA66 GF UL94 V0 |
| Cable glands | PA66 UL94 V2 |
| Grommets | TPE |
| Co-moulded seals | TPE |
| Contact screw terminals | Brass |
| Standard/Piercing screws | Steel |
Variations
| Item number | Number of contacts | Cable section | Protection degree | Protection degree details | Lower temperature | Upper temperature | Pollution degree | Standards | Tracking index |
|---|---|---|---|---|---|---|---|---|---|
| THB.387.N2A | 2 | 0,5 - 2,5 mm² | IP66/IP68 | IP68 (30m/3h) | -40 °C | +125 °C | 2 | EN61984:2009 | PTI 175 |
| THB.387.N3A | 3 | 0,5 - 2,5 mm² | IP66/IP68 | IP68 (30m/3h) | -40 °C | +125 °C | 2 | EN61984:2009 | PTI 175 |
| THB.387.N5A | 5 | 0,25 - 1,5 mm² |
