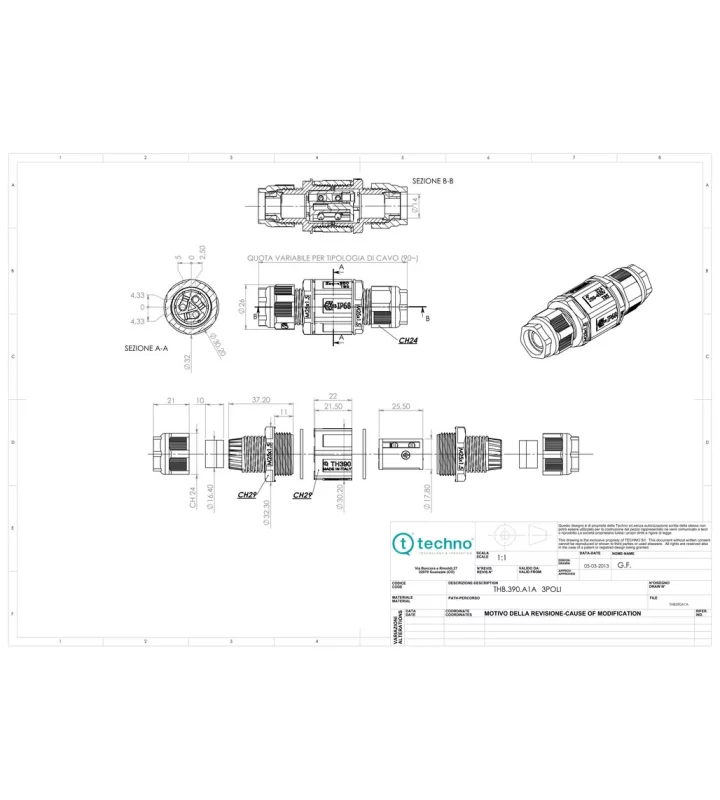

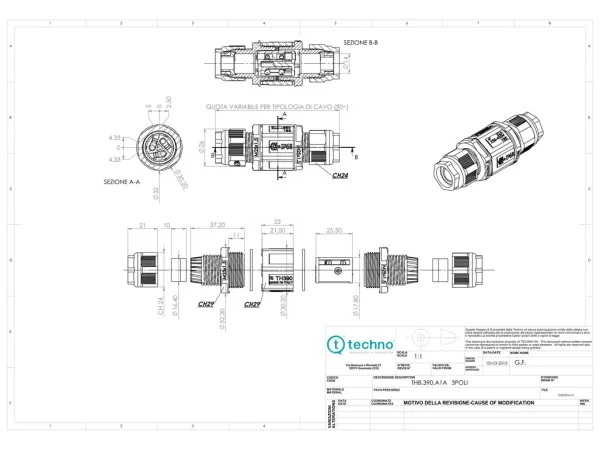

Mini joint connector, Screw with wire protection
IP68
THB.390.A3B
Continue assembling your connector
Add the desired accessories to fully configure your connector.
Specifications
General Characteristics
| Series | TEETUBE |
|---|---|
| Subseries | TH390 |
| Number of contacts | 2 |
| Contact terminals | Screw |
| Cable section | 0,25 - 2,5 mm² |
| Min-max cable diameter | 7,0 - 13,5 mm |
| Protection degree | IP68 |
| Protection degree details | IP68 (50m/1h) |
| Max. temperature | T125 |
| Tracking index | PTI250 |
Electrical parameters
| Rated current | 24 A |
|---|---|
| Rated voltage | 450 V |
Material
| Body | PA66 GF UL94 V0 |
|---|---|
| Connector housing | PA66 GF UL94 V0 |
| Cable glands | PA66 GF UL94 V2 |
| Seals | TPE |
| Ring closure | Silicone |
| Contact screw terminals | Brass |
| Screw | Steel |
Variations
| Item number | Number of contacts |
|---|---|
| THB.390.A3A | 3 |
