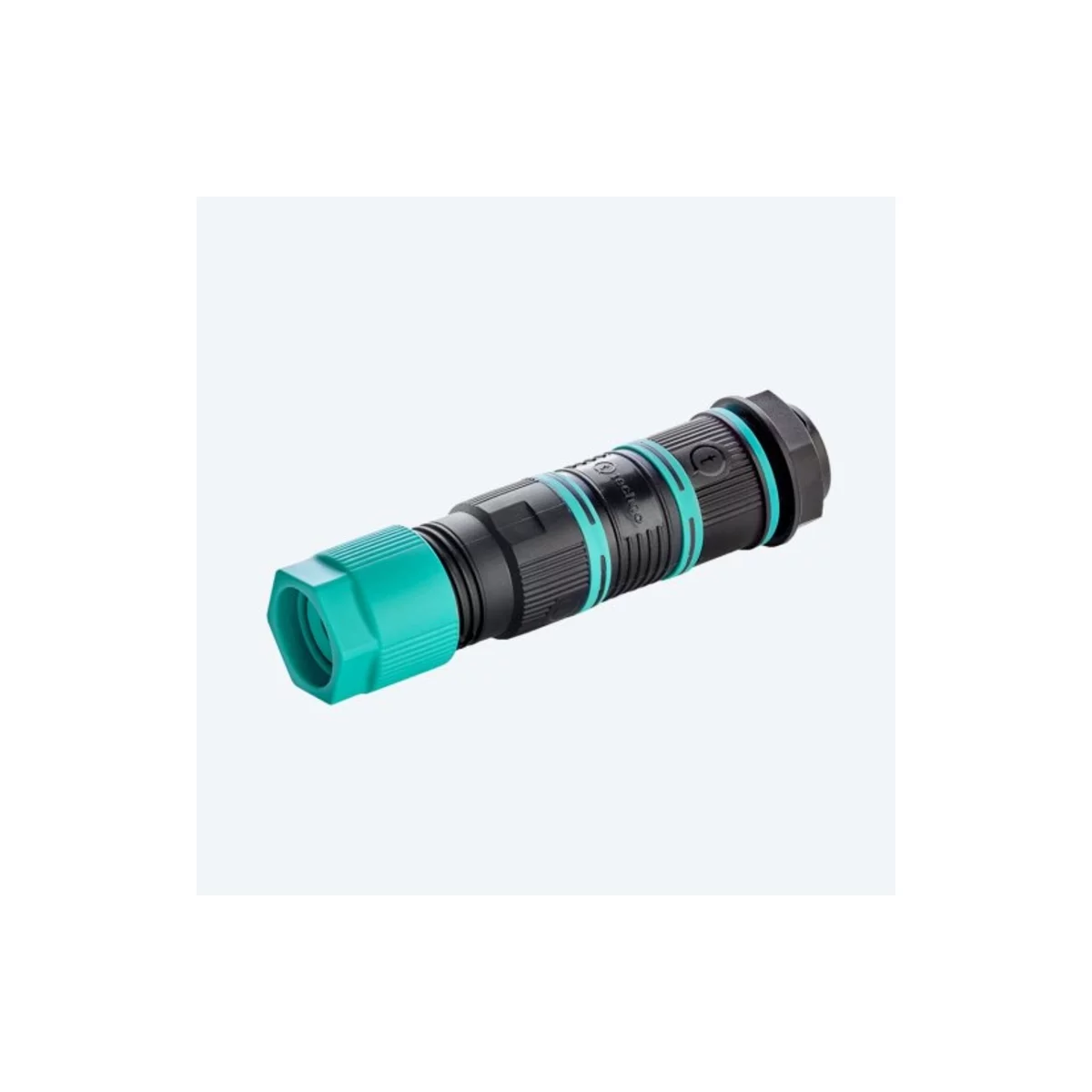

Joint connector panel-mounted, Screw
M20, IP68 xDRY
THB.391.N4A.L
Continue assembling your connector
Add the desired accessories to fully configure your connector.
Specifications
General Characteristics
| Series | TEETUBE |
|---|---|
| Subseries | TH391 |
| Number of contacts | 4 |
| Product shape | I |
| Contact terminals | Screw |
| Cable section | 0,5 - 1,5 mm² |
| Min-max cable diameter | 7,0 - 13,5 mm |
| Cable entries/exits | 2 ways |
| Protection degree | IP68 |
| Protection degree details | IP68 (30m/2h) |
| Max. temperature | T85 |
| Tracking index | PTI 250 |
| Remark* | xDRY connectors protected from water and dust (IP68) with anti-condensation barrier. The xDRY system prevents the damp inside the cable from entering the connection and proceeding towards the device installed |
Electrical parameters
| Rated current | 17.5 A |
|---|---|
| Rated voltage | 450 V |
Material
| Connector housing | PA66 GF UL94 V0 |
|---|---|
| Cable glands | PA66 UL94 V2 |
| Grommets | TPE |
| Co-moulded seals | TPE |
| Contact screw terminals | Brass |
| Standard/Piercing screws | Steel |
Variations
| Item number | Min-max cable diameter |
|---|---|
| THB.391.N4A | 7,0 - 12,0 mm |
