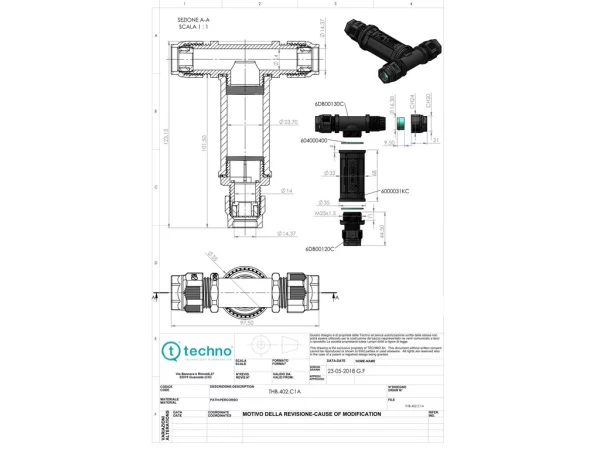

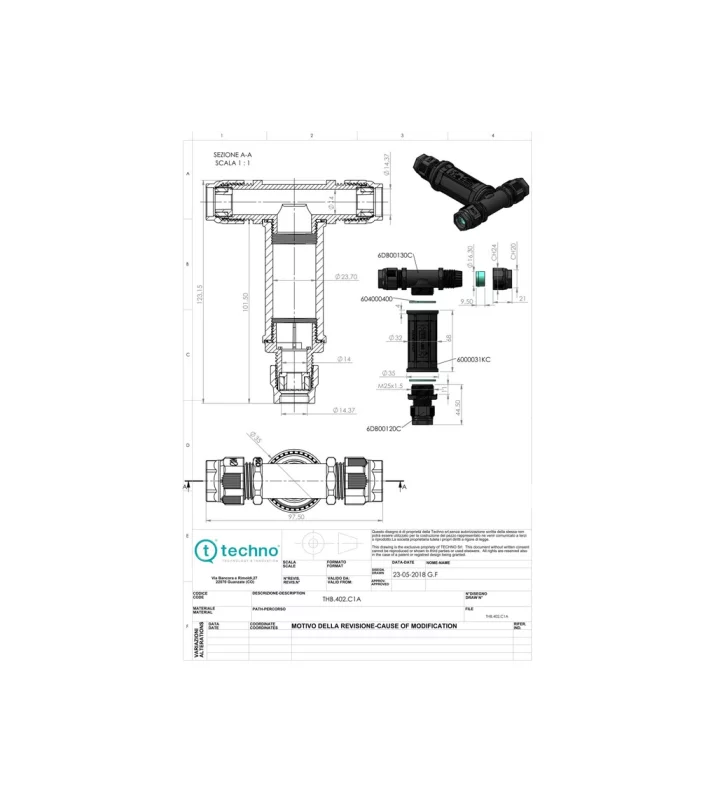

Junction connector T, Screw
IP68
cable Ø 7,0-13,5mm
THB.402.C1D
Continue assembling your connector
Add the desired accessories to fully configure your connector.
Specifications
General Characteristics
| Series | TEETUBE |
|---|---|
| Subseries | TH402 |
| Number of contacts | 4 |
| Product shape | T |
| Contact terminals | Screw |
| Cable section | 0,5 - 1,5 mm² |
| Min-max cable diameter | 7,0 - 13,5 mm |
| Cable entries/exits | 3 ways |
| Protection degree | IP68 |
| Protection degree details | IP68 (20m/1h) |
| Max. temperature | T125 |
| Standards | EN60529:1991+A1:2000 EN60998-1:2004 EN60998-2-1:2004 |
| Tracking index | PTI 250 |
Electrical parameters
| Rated current | 32 A |
|---|---|
| Rated voltage | 450 V |
Material
| Body | PA66GF UL94 V0 |
|---|---|
| Connector housing | PA66 GF UL94 V0 |
| Cable glands | PA66 UL94 V2 |
| Grommets | TPE |
| Contact screw terminals | Brass |
| Standard/Piercing screws | Steel |
Variations
| Item number | Number of contacts |
|---|---|
| THB.402.C1B | 2 |
| THB.402.C1A | 3 |
| THB.402.C1F | 5 |
| THB.402.C1G | 6 |
