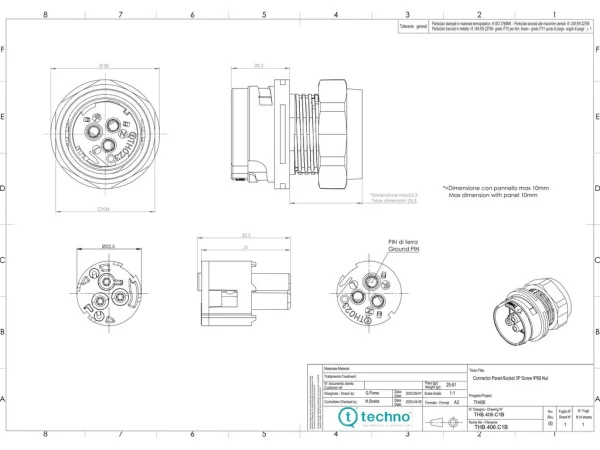

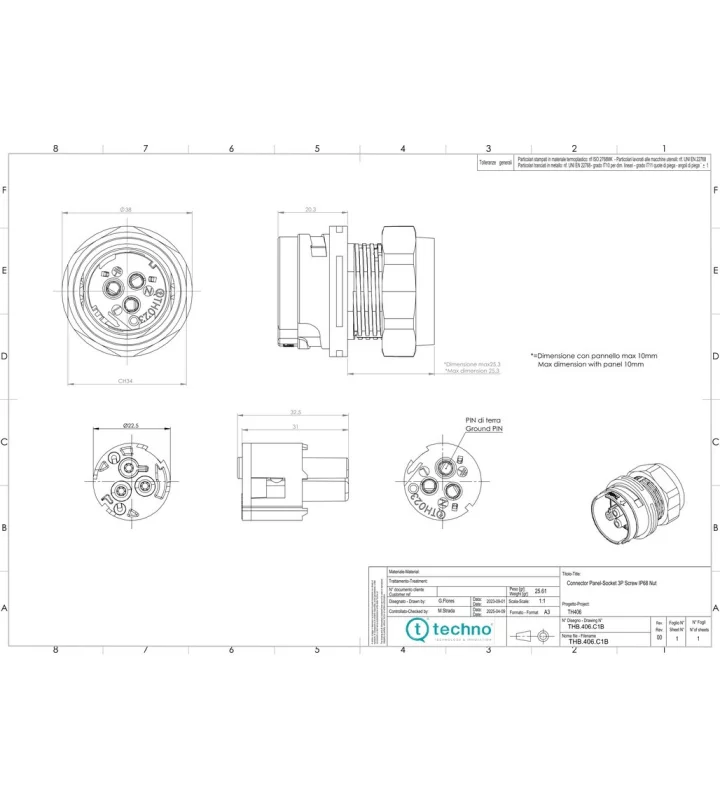

Socket connector panel-mounted M28, screw
IP68
THB.406.C1B
Continue assembling your connector
Add the desired accessories to fully configure your connector.
Specifications
General Characteristics
| Series | TEEPLUG |
|---|---|
| Subseries | TH406 |
| Number of contacts | 3 |
| Gender | Female |
| Contact terminals | Screw |
| Cable section | 0,5 - 2,5 mm² |
| Protection degree | IP68 |
| Protection degree details | IP68 (10m/1h) |
| Lower temperature | -40 °C |
| Upper temperature | +125 °C |
| Pollution degree | 2 |
| Standards | EN61984:2001 |
| Tracking index | PTI 175 |
Electrical parameters
| Rated current | 25 A |
|---|---|
| Rated voltage | 400 V |
| Impulse withstand voltage | 4 kV |
Material
| Body | PA66 UL94 V2 |
|---|---|
| Impulse withstand category | II |
| Connector housing | PA66 GF UL94 V0 |
| Cable glands | PA66 UL94 V2 |
| Grommets | TPE |
| Contact screw terminals | Brass |
| Standard/Piercing screws | Steel |
Variations
| Item number | Rated current | Impulse withstand voltage | Number of contacts | Nominal current (A) | Cable section |
|---|---|---|---|---|---|
| THB.406.C1G | 25 A | 4 kV | 2 | >20 - ≤30 A | 0,5 - 2,5 mm² |
| THB.406.C1A | 17.5 A | 6 kV | 5 | >10 - ≤20 A | 0,5 - 1,5 mm² |
| THB.406.C1E | 17.5 A | 6 kV | 6 | >10 - ≤20 A | 0,5 - 1,5 mm² |
