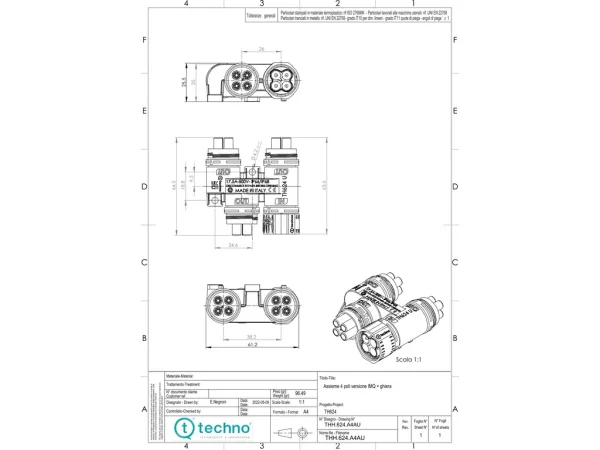

17,5A Current distributor 4 type H
IP68
4 ways
THH.624.A4A
Continue assembling your connector
Add the desired accessories to fully configure your connector.
Specifications
General Characteristics
| Series | TEEBOX CURRENT DISTRIBUTORS |
|---|---|
| Subseries | TH624 |
| Number of contacts | 4 |
| Contact terminals | Screw |
| Cable entries/exits | 4 ways |
| Protection degree | IP68 |
| Lower temperature | -40 °C |
| Upper temperature | +125 °C |
| Note | Plug and socket connectors are not included, To be ordered seperately |
| Standards | EN61984:2009 |
| Tracking index | PTI 175 |
Electrical parameters
| Rated current | 17.5 A |
|---|---|
| Rated voltage | 500 V |
| Impulse withstand voltage | 4 kV |
Material
| Distributor and connector housing | PA66 UL94 V0 GWT 960°C |
|---|---|
| Seals | TPE |
| Contact screw terminals | Nickel plated |
| Screw | Steel |
Variations
| Item number | Number of contacts |
|---|---|
| THH.624.A5A | 5 |
