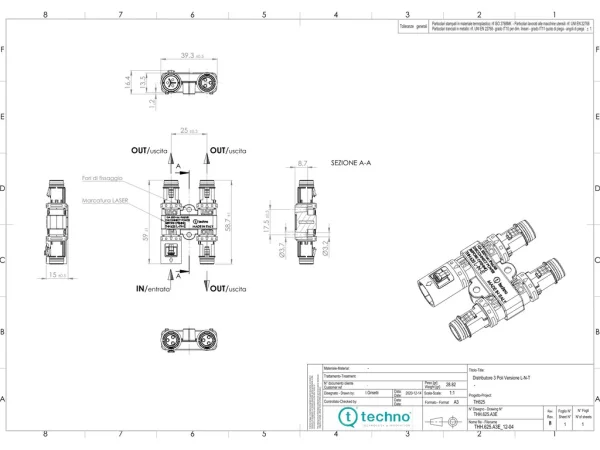

Current distributor plug & socket 3P scew
IP66/IP68
4 ways, With marking N & earth
THH.625.A3E
Continue assembling your connector
Add the desired accessories to fully configure your connector.
Specifications
General Characteristics
| Series | TEEBOX CURRENT DISTRIBUTORS |
|---|---|
| Subseries | TH625 |
| Number of contacts | 3 |
| Contact terminals | Contact screw terminals for cable section < 1,0 mm² |
| Cable entries/exits | 4 ways |
| Protection degree | IP66/IP68 |
| Lower temperature | -40 °C |
| Upper temperature | +100 °C |
| Pollution degree | 2 |
| Note | Plug and socket connectors are not included, To be ordered seperately |
| Standards | EN 61984:2009 |
| Tracking index | PTI 175 |
Electrical parameters
| Rated current | 10 A |
|---|---|
| Rated voltage | 500 V |
Material
| Impulse withstand category | II |
|---|---|
| Distributor and connector housing | PA66 GF UL94 V0 |
| Seals | TPE |
