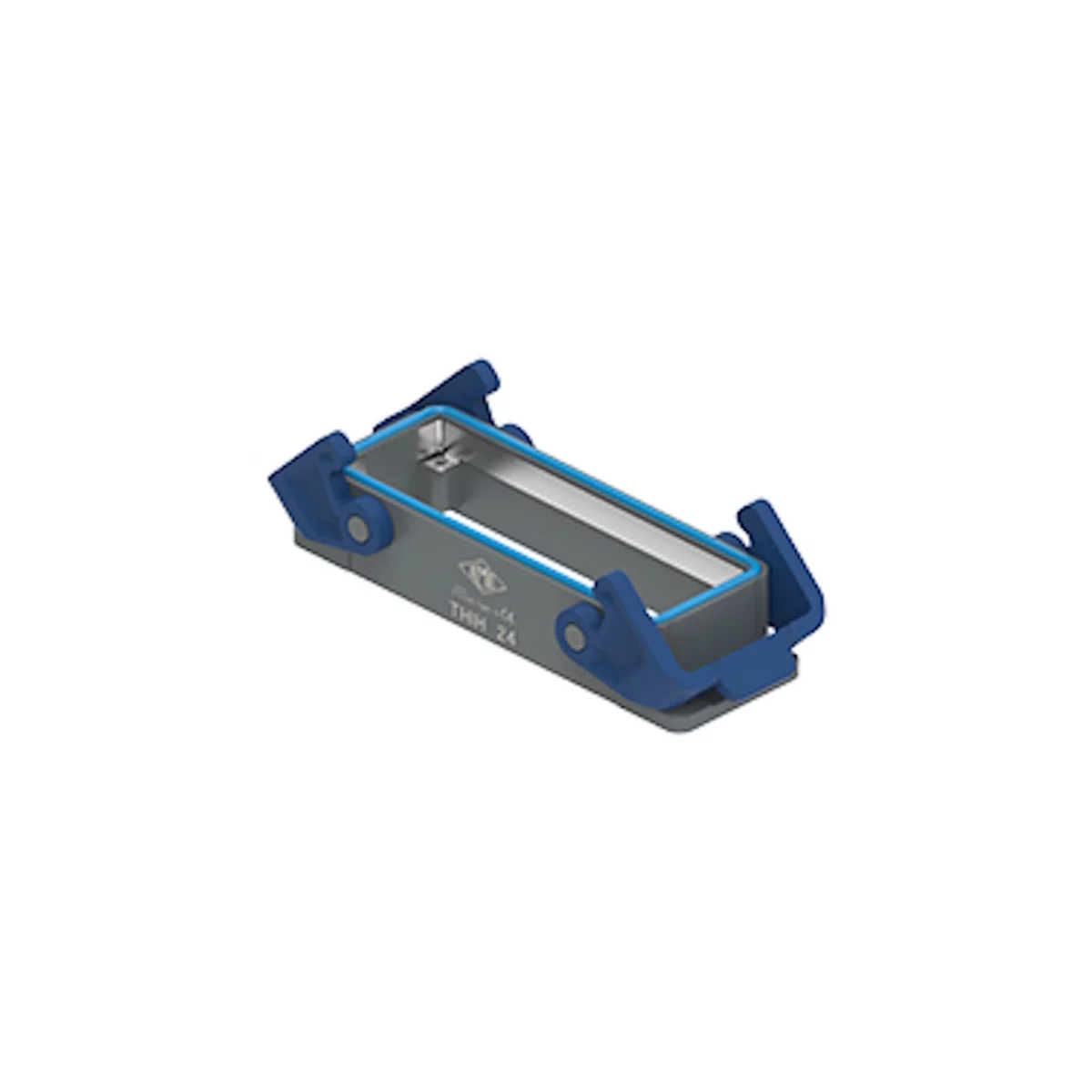

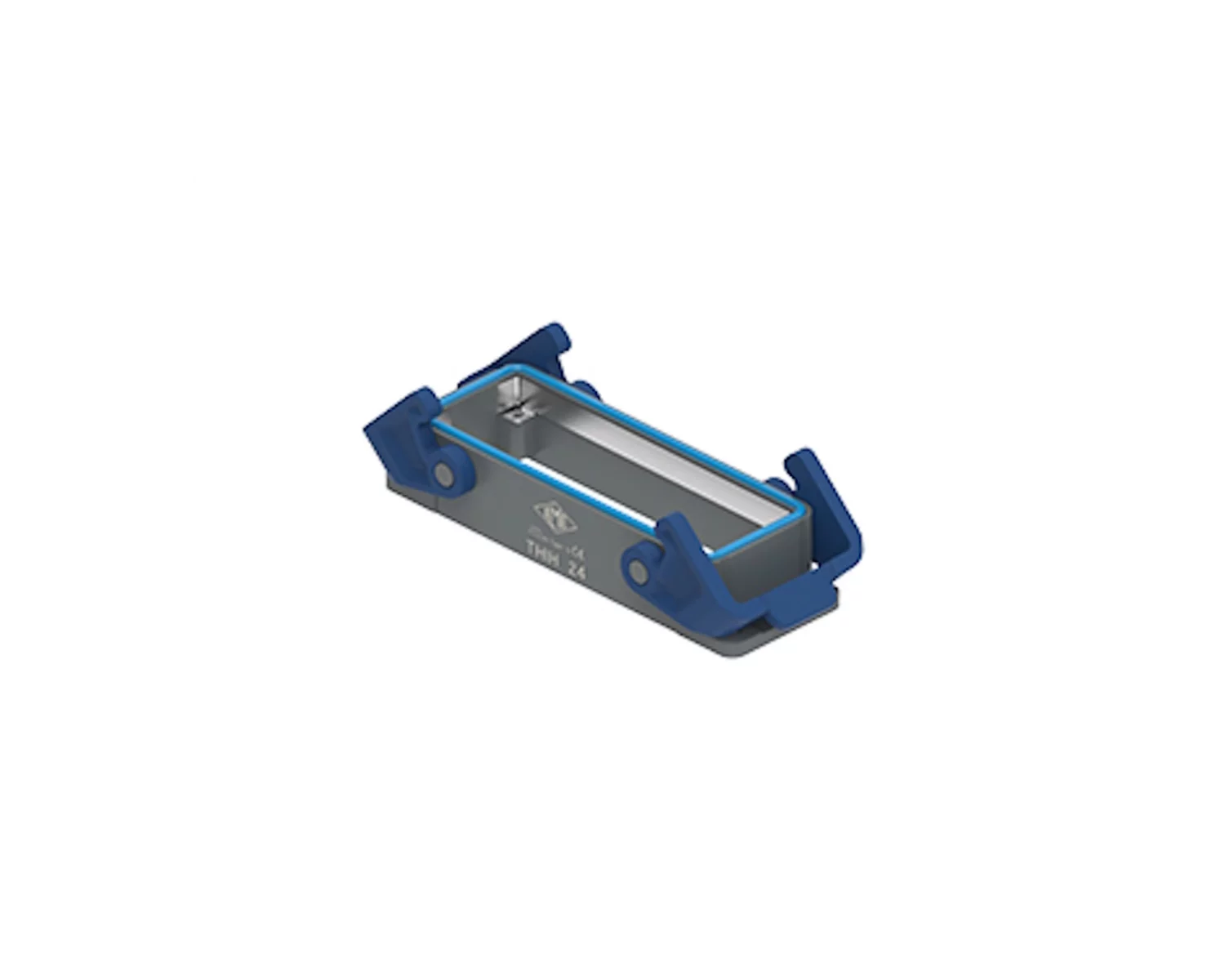

bulkhead mounting housing, size 104.27, T-TYPE /C plastic, 2 levers, PE-jumper

THIC 24 B

Add the desired standard inserts to fully configure your connector.

Enclosure type	Bulkhead mounting housing
Size	104.27
Enclosure series	T-TYPE /C
Closing type	With 2 levers
Locking mechanism	Double locking levers
Protection degree	IP66 / IP69
Ambient lower temperature	-50 °C
Ambient upper temperature	70 °C
Operation lower temperature	-50 °C
Operation upper temperature	70 °C
Cable entry type	without cable entry
Position cable feed	Without cable entry
Height	27 mm
Width	46.5 mm
Length	143 mm

Material housing	Thermoplastic
Coating housing	Uncoated
Inflammability class of insulation material acc. with UL94	V0
