bulkhead mounting housing, size 44.27, T-TYPE /W plastic, 1 lever

THIW 06 L

Add the desired standard inserts to fully configure your connector.

Enclosure type	Bulkhead mounting housing
Size	44.27
Enclosure series	T-TYPE /W
Closing type	With 1 lever
Locking mechanism	Single locking lever
Protection degree	IP66 / IP69
Ambient lower temperature	-40 °C
Ambient upper temperature	90 °C
Operation lower temperature	-40 °C
Operation upper temperature	90 °C
Cable entry type	without cable entry
Position cable feed	Without cable entry

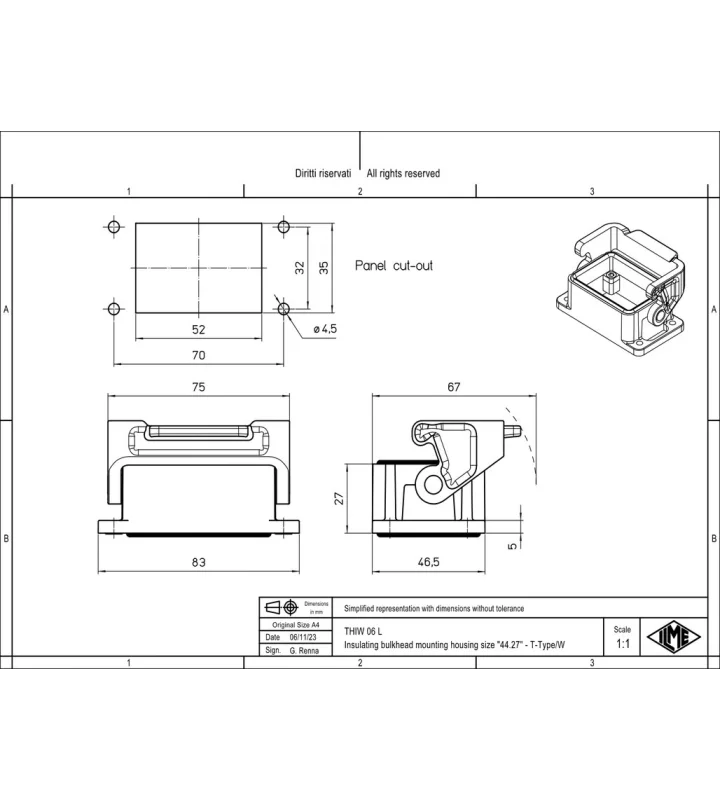

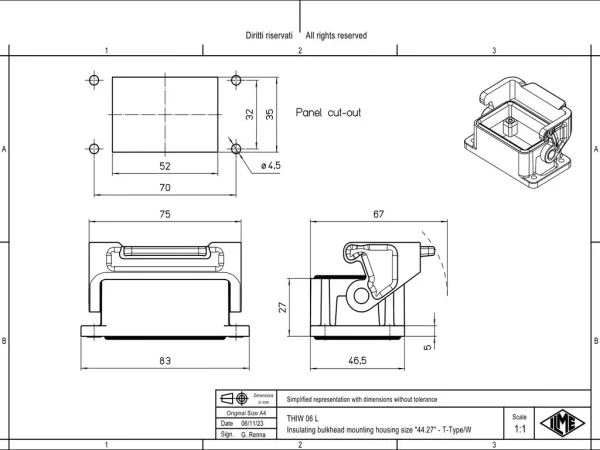

Height	27 mm
Width	46.5 mm
Length	83 mm

Material housing	Thermoplastic
Coating housing	Uncoated
Inflammability class of insulation material acc. with UL94	V0
Extra information	Corrosion resistant,UV resistant,With interlocking device
