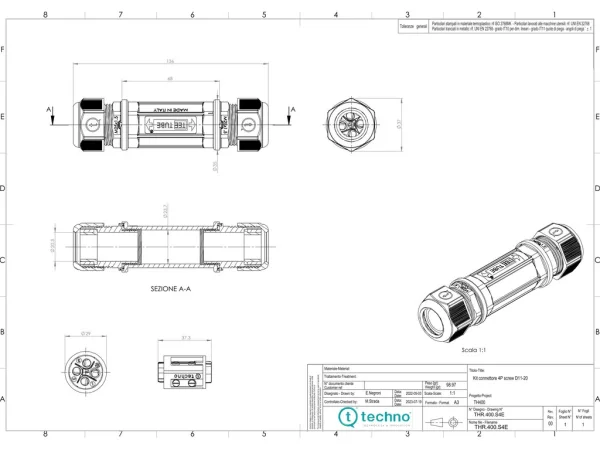

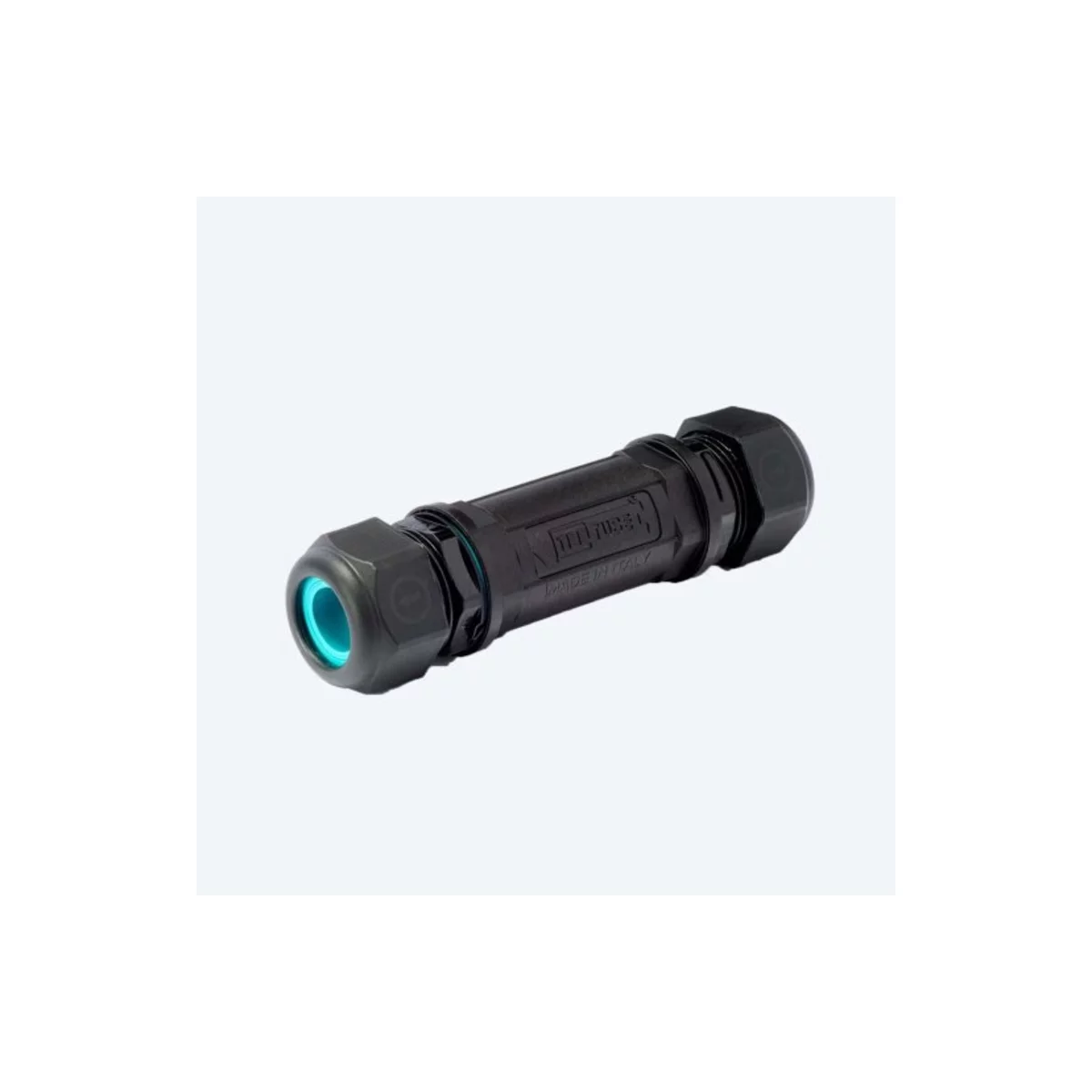

Kit Joint connector
Screw, IP68
THR.400.S4E
Continue assembling your connector
Add the desired accessories to fully configure your connector.
Specifications
General Characteristics
| Series | TEETUBE |
|---|---|
| Subseries | TH400 |
| Number of contacts | 4 |
| Contact terminals | Screw |
| Cable section | 1,50 - 2,50 mm² |
| Min-max cable diameter | 11,0 - 20,0 mm |
| Protection degree | IP68 |
| Protection degree details | IP68 (50m/1h) |
| Tracking index | PTI 250 |
Electrical parameters
| Rated current | 32 A |
|---|---|
| Rated voltage | 750 V |
Material
| Body | PA66 GF UL94 V0 |
|---|---|
| Distributor and connector housing | PA66 GF UL94 V0 |
| Cable glands | PA66 GF UL94 V2 |
| Seals | TPE |
| Screw | Steel |
