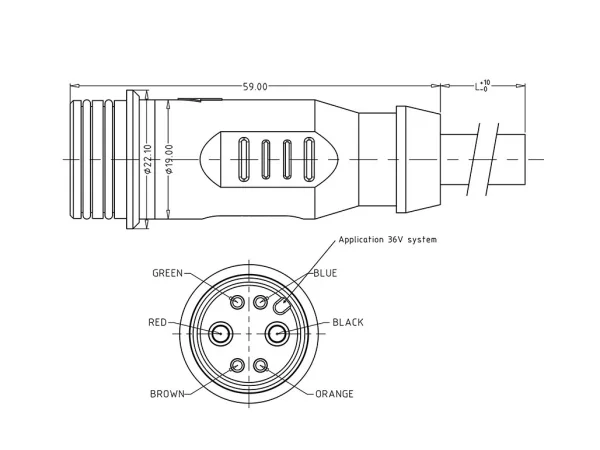

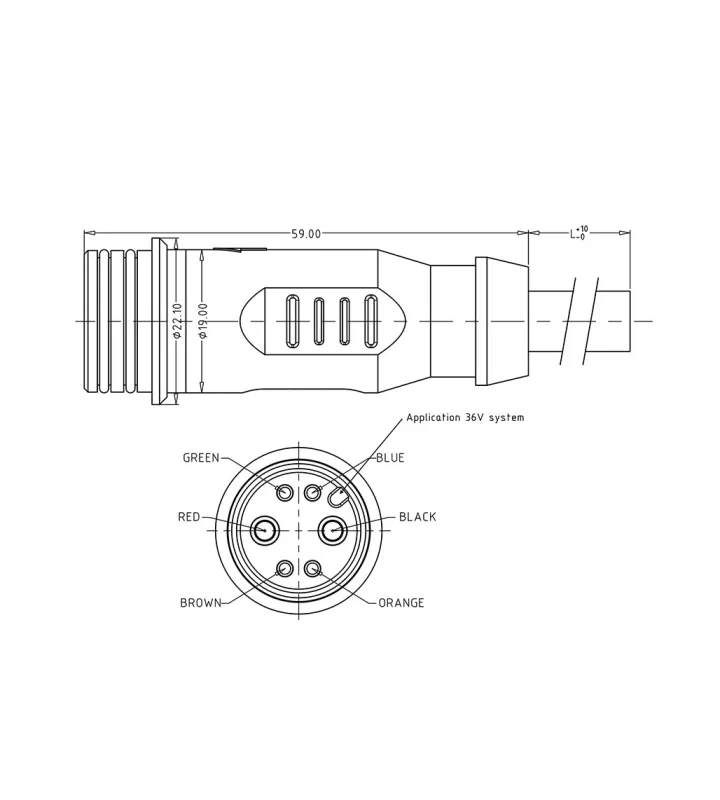

Battery Male plug connector 36V code, no locking (push-on)
Only for use in 36V applications
Z624CG P 00 FH 1000
Specifications
General Characteristics
| Number of contacts | 6 (2+4) |
|---|---|
| Connector shape | Plug |
| Gender | Male |
| Color | Black |
| Upper temperature | 80 °C |
| Lower temperature | -25 °C |
| IP Protection | IP67 |
| Mating cycles | 3000 Times |
| Connector diameter | 19 mm |
| Cable Length | 1000 mm |
| Wire section | 2 x 2,0 + 4 x 0,34 |
| Remark | Other cable length/type on request |
Electrical Parameters
| Rated current | 45 / 5 A |
|---|---|
| Rated voltage | 48 V AC / 60 V DC |
| Max. insulation resistance | ≥20 MΩ |
| Max. contact resistance | ≤10 mΩ |
Material
| Material jacket | TPU |
|---|---|
| Insulation wire | PVC |
| Material of contact | Brass |
| Contact plating | Gold over Nickel |
