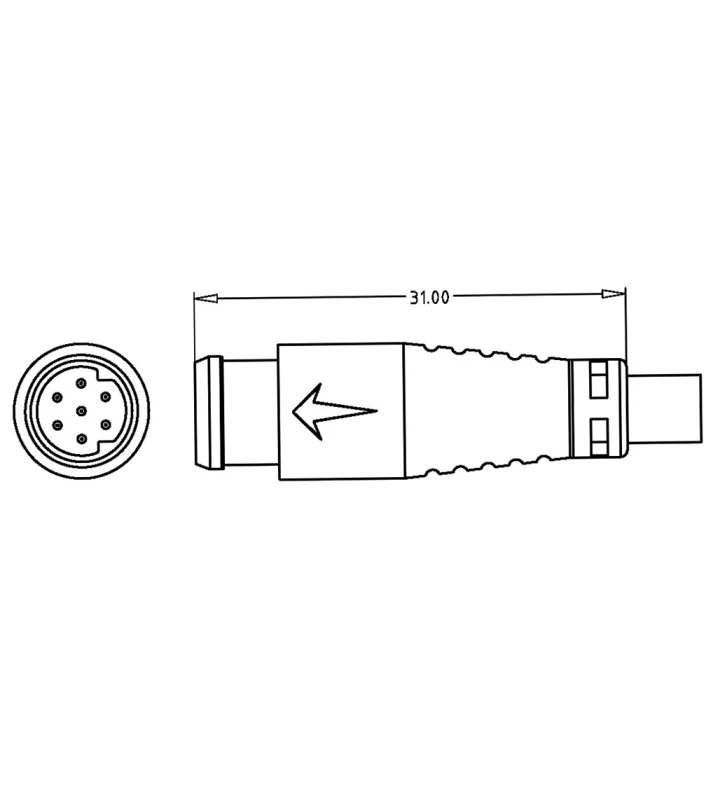

Male cable connector
Z710AG P 00 FL 1000
Specifications
General Characteristics
| Number of contacts | 7 |
|---|---|
| Connector shape | Plug |
| Gender | Male |
| Color | Black |
| Upper temperature | 80 °C |
| Lower temperature | -25 °C |
| IP Protection | IPX7 |
| Mating cycles | 200 Times |
| Connector diameter | 9.7 mm |
| Fitting length | 55 mm |
| Cable Length | 1000 mm |
| Wire section | 7 x 0,14 mm² |
| Remark | Other cable length/type on request |
Electrical Parameters
| Rated current | 2 A |
|---|---|
| Rated voltage | 48 V AC / 60 V DC |
| Max. insulation resistance | ≥20 MΩ |
| Max. contact resistance | ≤10 mΩ |
Material
| Material jacket | PVC |
|---|---|
| Insulation wire | PVC |
| Material of contact | Phosphor Bronze |
| Contact plating | Gold over Nickel |
