Receptacle AWG#28 Green

  • KRD CONNECTOR
Download product sheet

Number Of Poles

  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
  • 16
Article Number 02KR-D8M-P
Number Of Contacts 2
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 2mm Pitch Disconnectable IDC
Connection Type Printed Circuit Board Connectors
Pitch / Style 2.00 mm
Rated Current (ac/dc) 1.0 A
Rated Voltage (ac/dc) 100 V
Pcb Mount Style Surface Mount Technology (SMT) Through-hole Technology (THT)
Characteristics differ between variants of a connector

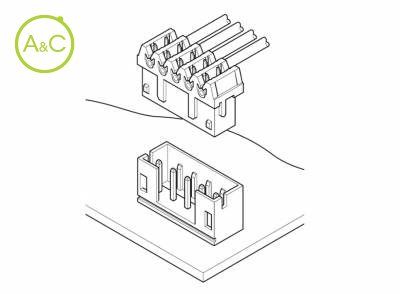

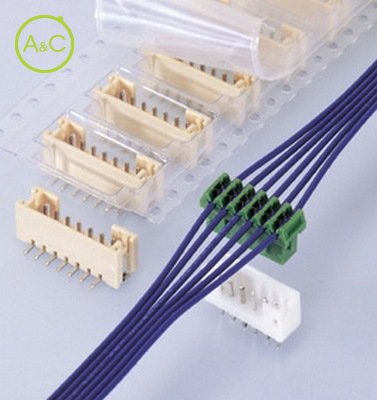

This 2.0mm (.079") pitch insulation displacement connector is another version of the NRD connector for printed circuit boards. The KRD connector allows daisy chaining and is very useful in simplifying connection systems in electronic equipment. Daisy chain connection The connection shown in the figure is commonly called "daisy chain connections" or "through connections". With these simple connections, many signals can be bussed to many different printed circuit boards. The KRD connector is constructed to allow such daisy chain connectors. Twin slot insulation displacement section The insulation displacement section connected to the wire consists of twin tin-plated slots for superb reliability. Distortion resistant construction The header is shrouded and thus protects the receptacle from damage that could be caused by mating the connectors at an angle or otherwise mismating the connectors. Interchangability The shrouded header is interchangeable with the PH crimp style connectors and or KR and CR insulation displacement connectors. Low profile design - a mere 9.0mm (.354") high from the PC board surface Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
