Receptacle AWG#32 Grey

  • SSR CONNECTOR
Download product sheet

Number Of Poles

  • 2
  • 3
  • 4
  • 5
  • 6
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
Article Number 02SSR-32H
Number Of Contacts 2
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 1mm Pitch Disconnectable IDC
Connection Type Printed Circuit Board Connectors
Pitch / Style 1.00 mm
Rated Current (ac/dc) 0.5 A
Rated Voltage (ac/dc) 50 V
Pcb Mount Style Surface Mount Technology (SMT)
Characteristics differ between variants of a connector

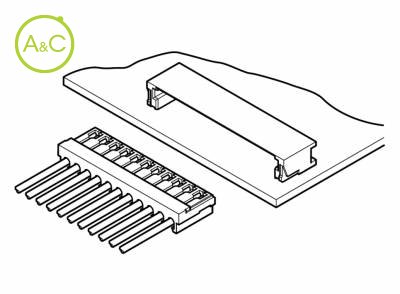

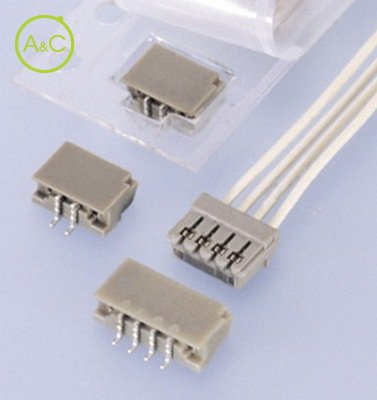

Although this shrouded header has locking features for its mating receptacle, there are no holes in the header shroud that would adversely effect vacuum gripping equipment. Ultra-compact 1.0mm (.039") pitch and only 2.0mm (.079") high and 4.5mm (.177") thick. Twin U-slot insulation displacement section The insulation displacement section connected to each wire consists of two tin-plated slots (twin U-slots), which ensures reliable connectiion. 3-Point grip construction The 3-point insulation grip feature and the strain relief ensure a firm grip on terminated wires and protection of the insulation displacement connection from possible damage. Header designed for vacuum pick and place robotics Although this shrouded header has locking features for its mating receptacle, there are no holes in the header shroud that would adversely effect vacuum gripping equipment. Since there is enough flat surface for secure vacuum gripping, this miniature surface mount connector is versatile for designers and economic for manufacturing. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
