Back to product overview
Download product sheet
Receptacle for JL Connector
- JL CONNECTOR
Do you have any questions about this product?
More info on this brand:
JST
JST
Number Of Poles
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 15
| Article Number | 03JL-BT-E |
| Number Of Contacts | 3 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.5mm Pitch Board-to-Board Connector |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.50 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) |
| Article Number | 04JL-BT-E |
| Number Of Contacts | 4 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.5mm Pitch Board-to-Board Connector |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.50 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) |
| Article Number | 05JL-BT-E |
| Number Of Contacts | 5 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.5mm Pitch Board-to-Board Connector |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.50 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) |
| Article Number | 06JL-BT-E |
| Number Of Contacts | 6 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.5mm Pitch Board-to-Board Connector |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.50 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) |
| Article Number | 07JL-BT-E |
| Number Of Contacts | 7 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.5mm Pitch Board-to-Board Connector |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.50 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) |
| Article Number | 08JL-BT-E |
| Number Of Contacts | 8 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.5mm Pitch Board-to-Board Connector |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.50 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) |
| Article Number | 09JL-BT-E |
| Number Of Contacts | 9 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.5mm Pitch Board-to-Board Connector |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.50 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) |
| Article Number | 10JL-BT-E |
| Number Of Contacts | 10 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.5mm Pitch Board-to-Board Connector |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.50 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) |
| Article Number | 11JL-BT-E |
| Number Of Contacts | 11 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.5mm Pitch Board-to-Board Connector |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.50 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) |
| Article Number | 12JL-BT-E |
| Number Of Contacts | 12 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.5mm Pitch Board-to-Board Connector |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.50 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) |
| Article Number | 13JL-BT-E |
| Number Of Contacts | 13 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.5mm Pitch Board-to-Board Connector |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.50 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) |
| Article Number | 15JL-BT-E |
| Number Of Contacts | 15 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.5mm Pitch Board-to-Board Connector |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 2.50 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Pcb Mount Style | Through-hole Technology (THT) |
Characteristics differ between variants of a connector

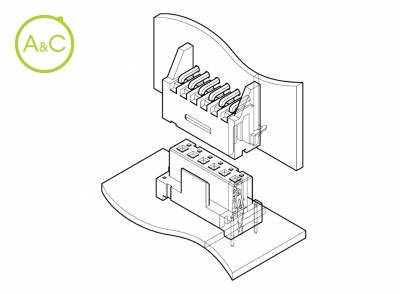

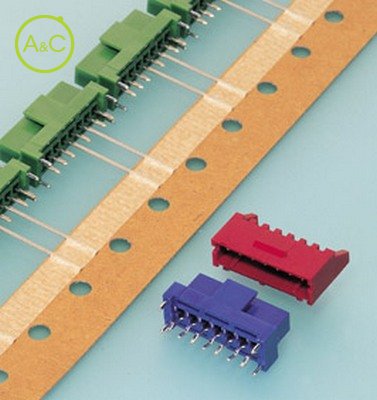

The JL connector is designed for board-to-board connection in electronic equipment requiring high-density mounting and unitization. This connector is highly resistant to equipment vibration and shock.
High contact pressure
High pressure contacts mate with each male pin on two sides. This assures stable connector performance during equipment vibration and shock.
Housing lock assures good connection even after severe shock & vibration
The connector halves can be easily mated, yet have a high retention force because of the housing lock mechanism. Even severe shocks and long periods of vibration will not interrupt these circuits. Both secure lock and friction lock connectors are available.
Polarized, fully shrouded header aligns the connector halves before their pins make contact
Lead-in chamfers, grooves, and matching ribs align the housings well before the contacts mate, thus preventing damage caused by misaligment or mismating.
Standards
UL Recognized E60389
CSA Certified LR20812
RoHS Compliant
