Receptacle Housing

  • JWPS CONNECTOR
Download product sheet

Number Of Poles

  • 4
Article Number 04R-JWPS-VELE-DZ-A 04R-JWPS-VKLE-DX-A
Number Of Contacts 4 4
Upper Temperature +85 °C +85 °C
Lower Temperature -55 °C -55 °C
General Description Waterproof Connectors (4.0mm Pitch Disconnectable Crimp Style (Wire to Board)) Waterproof Connectors (4.0mm Pitch Disconnectable Crimp Style (Wire to Board))
Connection Type Printed Circuit Board Connectors Printed Circuit Board Connectors
Pitch / Style 4.0 mm 4.0 mm
Rated Current (ac/dc) 4 C, DC (WG #22) 5 C, DC (WG #20) 6 C, DC (WG #18) A 4 C, DC (WG #22) 5 C, DC (WG #20) 6 C, DC (WG #18) A
Rated Voltage (ac/dc) 300 V 300 V
Pcb Mount Style Through-hole Technology (THT) Through-hole Technology (THT)
Remark* Waterproof Waterproof
Remark** Z Keying X Keying
Characteristics differ between variants of a connector

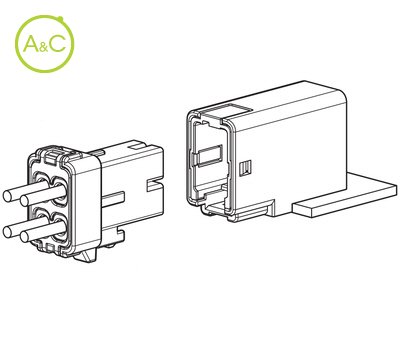

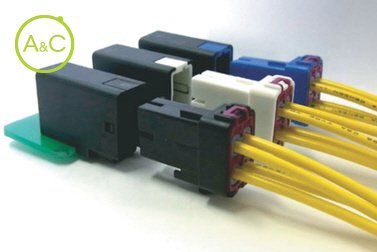

JST introduces the new waterproof JWPS connector series. This is a development on JST’s successful JWPF connector and meets the need for a small form factor waterproof connector that will cope with the electrical requirements normally associated with large connector systems. With a pitch size of 4.0mm, this waterproof connector consists of plug, receptacle, and header elements, that allow for wire to wire and wire to board configurations. The JWPS connector has been primarily designed for applications where waterproof protection is required, with a waterproof grade equivalent to 7 ingress protection. This crimp style connector features a PBT (glass filled) seal ring holder, which contains a silicon rubber seal ring. This ring offers effective sealing against liquids and protection from dust, gases and other contaminates. Available in 4 circuits, the JWPS series has a visually distinguishing three colour coding system for the prevention of mis-mating of the plug receptacle. Waterproof grade: Equivalent to 7 ingress protection of JIC C 0920. (IEC 60529 IPX7) Contained seal ring Mis-mating prevention key Double spring construction RoHS Compliant
