Plug Without Stop

  • JE CONNECTOR
Download product sheet

Number Of Poles

  • 5
  • 7
  • 9
  • 11
  • 13
  • 15
  • 17
  • 19
Article Number 05PS-JE
Number Of Contacts 5
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 1.25mm Pitch Board-to-Board Connector
Connection Type Printed Circuit Board Connectors
Pitch / Style 1.25 mm
Rated Current (ac/dc) 1.0 A
Rated Voltage (ac/dc) 50 V
Pcb Mount Style Through-hole Technology (THT)
Characteristics differ between variants of a connector

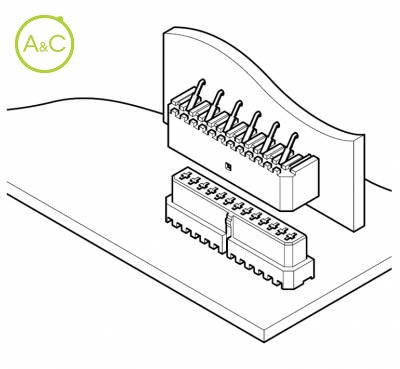

The JE connector is a compact, high density, board-to-board connector only 6.8mm (.268") high and 3.6mm (.142") wide. Its mating part has a 1.25mm (.049") pitch, single row construction. High contact pressure dual beam fork contacts are combined with a housing lock mechanism to ensure a reliable connection. A compact high-density design to meet today's needs The mating part has a 1.25mm (.049") pitch, single row construction. To meet the needs for high-density design, this compact, low-profile connector is only 6.8mm (.268") high and 3.6mm (.142") wide when mounted on the printed circuit board- roughly 40 percent smaller than our second smallest 2.0mm (.079") pitch model. Secure locking and reliable connection This connector features a high pressure, dual beam, fork contact. The secure housing lock ensure a highly reliable connection even under the severest environmental conditions. Box shaped housing Box-shaped housing prevents misinsertion. The plug fits securely into the mating receptacle for greater resistance to vibration. Easy mounting and no flux problems The contact solder tails can be easily clinched. This allows efficient, secure mounting onto printed circuit boards. The bottom of the connector housing is designed to prevent flux from adhering. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
