Female Connector for FH Connector

  • FH CONNECTOR
Download product sheet

Number Of Poles

  • 6
  • 11
  • 14
  • 20
Article Number 06FH-SM1-TB
Number Of Contacts 6
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 0.5mm Pitch Non-ZIF Connector for FPC
Connection Type Printed Circuit Board Connectors
Pitch / Style 0.50 mm
Rated Current (ac/dc) 0.5 A
Rated Voltage (ac/dc) 50 V
Pcb Mount Style Surface Mount Technology (SMT)
Characteristics differ between variants of a connector

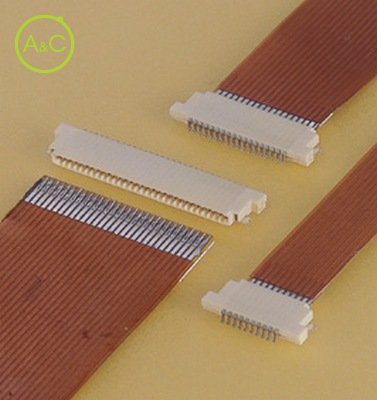

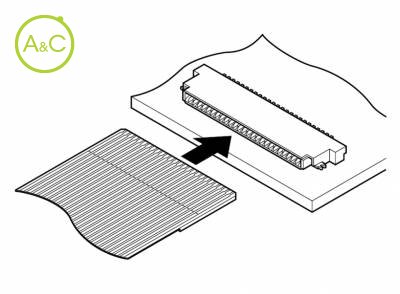

With a height of just 1.2mm and depth of 3.55mm, this 0.5mm pitch FPC connector is extremely low profile, which makes it an ideal connector for use in small and restricted environments. Featuring double-sided internal contact points, to facilitate top and bottom PCB placement, and using heat resistant materials. This connector is not only very universal, but is more than suitable for use in high re-flow temperature environments associated with lead free soldering. Double-sided contact The contact is double-sided, thus providing reliable connection with FPC. Applicable to standard FPC 0.3±0.05mm (.012"±.002") thick standard FPC can be used. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
