Fun Connector for FUN Connector

  • FUN CONNECTOR

Do you have any questions about this product?

Contact our connector specialist

Send me a personalized quote

Download product sheet

Number Of Poles

  • 13
Article Number 13FUN-B-SV
Number Of Contacts 13
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 1.0mm Pitch Board-in Connector for FFC
Connection Type Printed Circuit Board Connectors
Pitch / Style 1.00 mm
Pcb Mount Style Through-hole Technology (THT)
Characteristics differ between variants of a connector

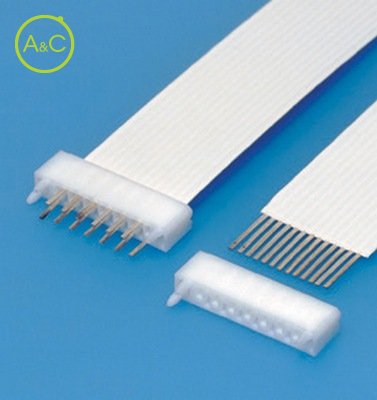

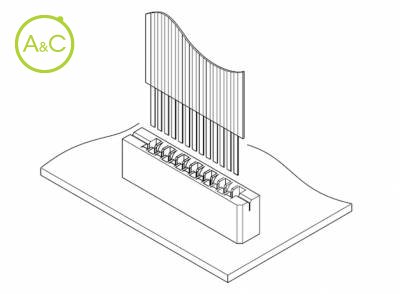

Diagram Enlarge Diagram Put the 'FUN' back into connectors with this 1.0mm pitch FFC connector, which was originally developed for use in DVD players, and applications where FFC diSConnection is not required. This board-in type connector provides direct soldering connection between the FFC and the PC board and therefore, a reduction in assembly time and cost can be realised. Smaller pitch type Adoption of the FU connector {1.25mm (.049") pitch} structure leads to the realization of a smaller pitch board-in type connector {1.0mm (.039") pitch}. Lower assembly costs Wiring the FFC directory to the PC board will reduce assembly costs. RoHS Compliant
