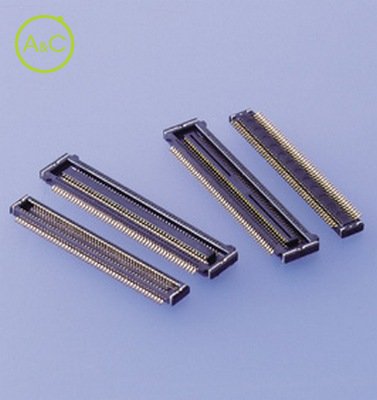

Receptacle for JAV connector

  • JAV CONNECTOR
Download product sheet

Number Of Poles

  • 20
  • 24
  • 40
Article Number 20R-JAVK-GSAN-TF
Number Of Contacts 20
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 0.4mm Pitch Board-to-Board Connector
Connection Type Printed Circuit Board Connectors
Pitch / Style 0.40 mm
Rated Current (ac/dc) 0.3 A
Rated Voltage (ac/dc) 30 V
Pcb Mount Style Surface Mount Technology (SMT)
Characteristics differ between variants of a connector

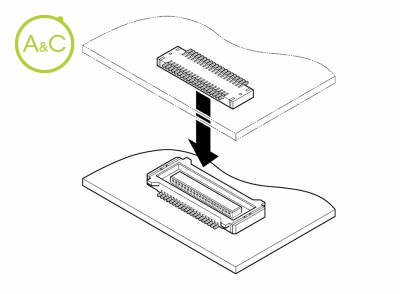

0.4mm (.016") pitch low-profile SMT connector for parallel connection. Thin with 1.5mm (.059") height after assembly. Contact lock mechanism. As contacts are designed to be locked each other with their spring action, they are hardly worn out. Thus, locking force and clicking feeling remain after repeated mating/unmating. Absorption area is enough for automatic mounting. Fine pitch and extremely low profile Pitch distance is 0.4mm (.016") and stacking height is only 1.5mm (.059") Contact lock construction Contact lock construction with spring feature provides the most favourable locking force and click feeling after repetition of mating and unmating without damage. Flat surface Flat surface allows well balanced mounting by vacuum pick and place robotics. Concentration contact structure with wiping action Contact part is a combination of roll surface at plug and fracture surface at receptacle with concentration contact, and stable electrical performance and excellent wiping effect are provided. Mating connector inside box shaped plug and receptacle Mating plug and receptacle inside box can prevent flux from adhering by adopting a box shaped structure. Solder going-up prevention The gold-plated contacts which prevent solder from going-up on contact under high-activity reflow condition are also available. JAV connector with mating guide Mating guide structure Plug has the protrusions which guide receptacle within ±0.5mm (.020") when inserting it. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
