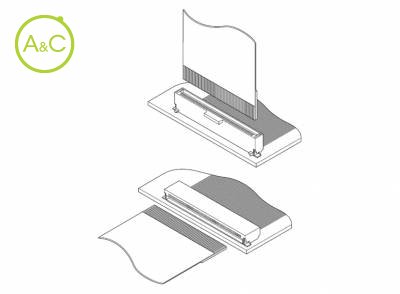

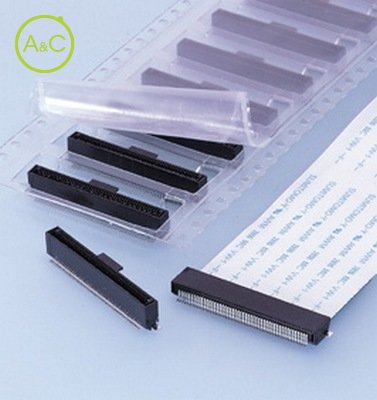

This 0.5mm pitch Non-ZIF connector features a single sided contact construction that not only allows for the FFC/FPC to be easily inserted but also enables the connector to offer superior electrical performance. Further more, this top and side entry SMT connector incorporates reinforcement solder tabs at each end of the connector that facilitate adhesion to the PCB and prevent the connector from distorting during FFC/FPC insertion/withdrawal cycles. Heat resistant design suitable for surface mounting The housing is made of heat resistant resin to allow reflow soldering. One-sided contact construction Though the insertion force is low, with its unique contact construction, the FY connector retains stable contact performance. Solder tabs This connector also features reinforcing solder tabs to prevent lifting of the connector during mating and unmating. Embossed tape for automatic mounting Supplied in embossed tape packaging for mounting by automatic placement machines. Standards UL Recognized E60389 CSA Certified LR20812 TUV R50006970 RoHS Compliant
