Housing for MS Connector
Do you have any questions about this product?
More info on this brand:
JST
JST
Applicable Wire
- 22 to 16 AWG
| Article Number | 3V-187 | 3V-187L |
| General Description | Microswitch Connector | Microswitch Connector |
| Applicable Wire Size | 0.3 to 1.25 (AWG #22 to #16) mm² | 0.3 to 1.25 (AWG #22 to #16) mm² |

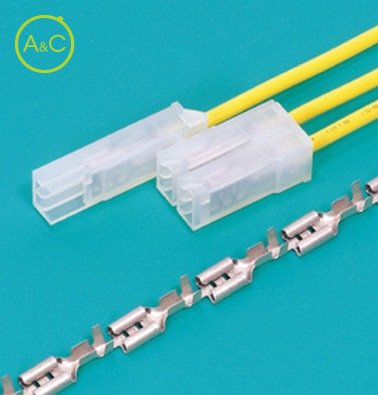

| Connection Type | Chain Terminals/Splices | Chain Terminals/Splices |
| Rated Current (ac/dc) | 10 A | 10 A |
| Rated Voltage (ac/dc) | 250 V | 250 V |
Characteristics differ between variants of a connector

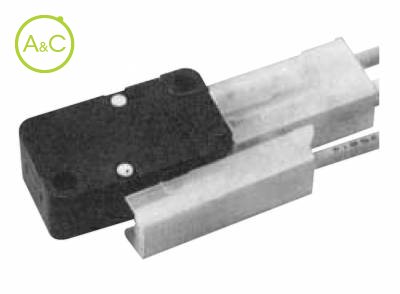

The microswitch connector conforms to the Electrical Appliance and Material Control Law in Japan. The connector can be easily attached to a microswitch with light force, facilitating assembly work. It is also constructed to prevent misinsertion of the contacts when inserting them into the housing. Easy to install, it ensures improved working efficiency in the assembly of harnesses.
Standards
UL Recognized E60389
CSA Certified LR20812
RoHS Compliant
