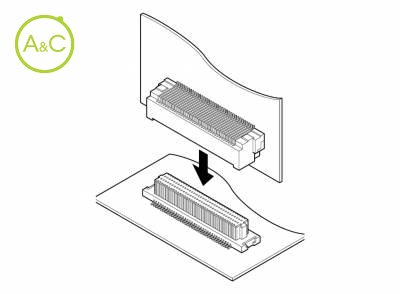

Top Entry Type Plug with Polarizing Key
Do you have any questions about this product?
More info on this brand:
JST
JST
Number Of Poles
- 60
| Article Number | 60P-JMDHS-GAN-1A-TF(A) |
| Number Of Contacts | 60 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 0.5mm Pitch Board-to-Board Connector |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 0.50 mm |
| Rated Current (ac/dc) | 0.5 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
Characteristics differ between variants of a connector
Box-shaped plug housing has guide ribs on both ends, which prevents distortion.
No. of circuits available are from 20 to 100, every 10 circuits.
Smooth connection
Thanks to the cantilever type contacts, mating is very smooth
Distortion preventive construction
Box-shaped plug housing has guide ribs on both ends, which prevents distortion.
Wide range of circuits
No.of circuits available are from 20 to 100, every 10 circuiits.

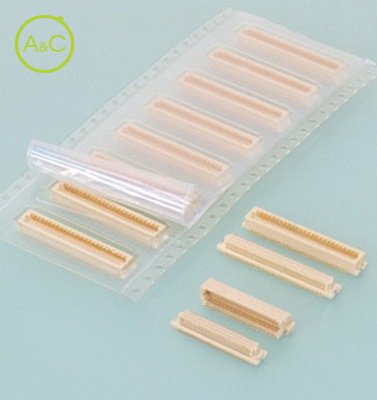

Embossed taping for automatic mounting
This connector is supplied in embossed tape packaging, for mounting by automatic placement machines.
Standards
UL Recognized E60389
CSA Certified LR20812
RoHS Compliant
