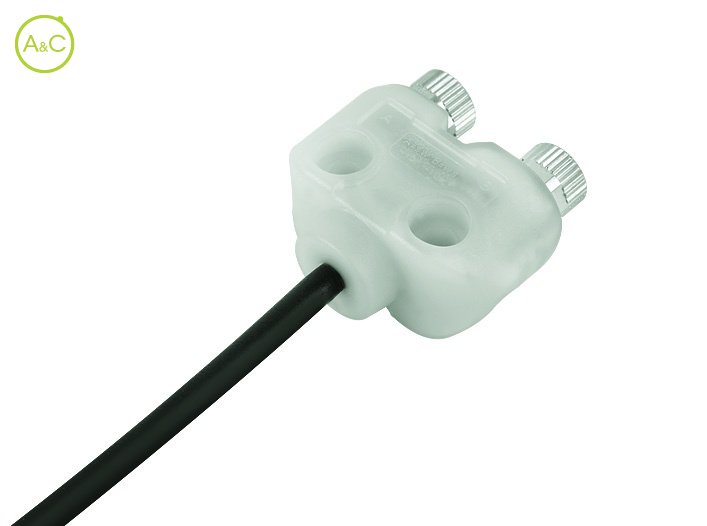

Twin distributor
Do you have any questions about this product?
More info on this brand:
Binder
Binder
Number Of Poles
- 3
| Article Number | 79 5232 33 04 |
| Connector Diameter | 35.4 mm |
| Number Of Contacts | 3 contacts |
| Connector Locking System | Screw |
| Protection Degree | IP68 |
| Mating Cycles | >100 times |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| Rated Voltage | 30 |
| Rated Impuls Voltage | 800 V |
| Pollution Degree | 3 |
| Overvoltage Categorie | II |
| Material Group | II |
| Rated Current (40°) | 4 A |
| Max. Contact Resistance | 3 mΩ |
| Material Of Contact | Pin CuZn (Brass), Socket (Bronze) |
| Plating | Au (Gold) |
| Material Of Insert | PUR |
| Material Of Housing | PUR |
| Product sheet | Download product sheet |
Characteristics differ between variants of a connector
