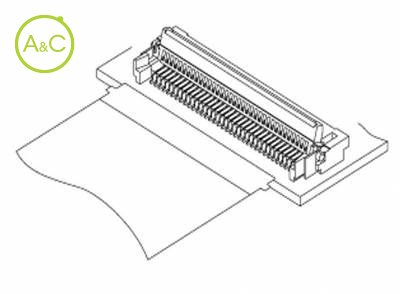

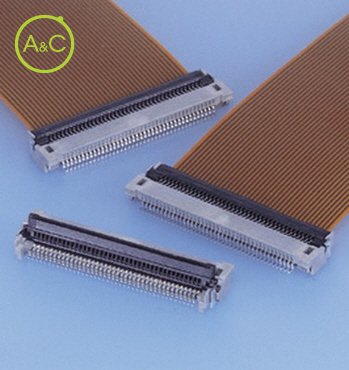

Female Connector for FXM Connector
Do you have any questions about this product?
More info on this brand:
JST
JST
Number Of Poles
- 80
| Article Number | 80FXM-RSM1-G-1-TB |
| Number Of Contacts | 80 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 0.3mm Pitch ZIF Connector for FPC |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 0.30 mm |
| Rated Current (ac/dc) | 0.2 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
Characteristics differ between variants of a connector
A substantial size for the 0.3mm (.012") pitch connector ensures easy handling. Moreover, since this connector accepts a FPC with protrusion providing secure as well as foolproof mating at the customers production line.
Double ZIF structure
Double ZIF contact structure enables untroubled FPC insertion.
Self-lock mechanism enables the cover to close by one-touch operation
A rotating flip-lock cover structure provides easy cover operation.
A FPC with protrusion improves operability and reliability
A FPC with protrustion makes FPC insertion easier so that it will impede improper mating and mis-insertion and therefore, provides excellent operability and reliable connection.
RoHS Compliant
