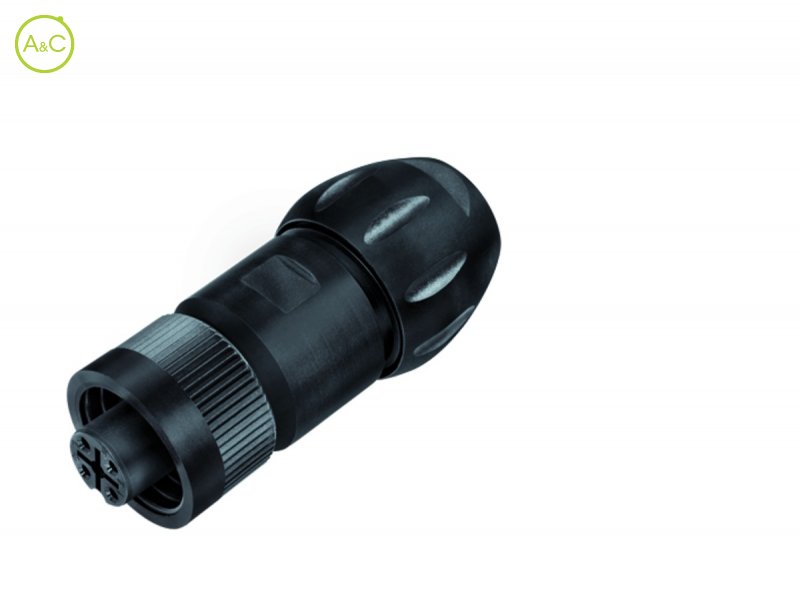

Female cable connector

  • Cable outlet 7-17 mm

Number Of Poles

  • 3+PE
  • 6+PE
Article Number 99 4222 300 04

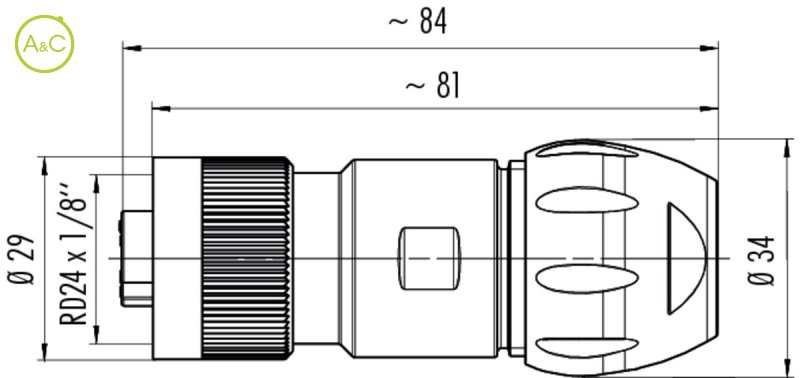

Connector Diameter 29 mm
Number Of Contacts 3+PE contacts
Connector Locking System Bolted
Wire Section 0,5-2,5 mm²
Protection Degree IP67
Mating Cycles >50 times
Upper Temperature +100 °C
Lower Temperature -40 °C
Rated Voltage 400
Rated Impuls Voltage 6000 V
Pollution Degree 3
Overvoltage Categorie III
Material Group III
Rated Current (40°) 16 A
Max. Contact Resistance ≤ 5 mΩ
Material Of Contact CuSn (Bronze)
Plating Ag (Silver)
Material Of Insert PBT
Material Of Housing PBT
Cable Outlet 7-17 mm
Wire Gauge 20-14 AWG
Product sheet Download product sheet
Characteristics differ between variants of a connector
