Female Connector for ARV Connector

  • ARV CONNECTOR
Download product sheet

Number Of Poles

  • 12
  • 18
  • 22
Article Number ARVPB-12-2AK ARVPB-12C12-2AK
Number Of Contacts 12 12
Upper Temperature +125 °C +125 °C
Lower Temperature -40 °C -40 °C
General Description 2.54mm Pitch Disconnectable Crimp Style 2.54mm Pitch Disconnectable Crimp Style
Connection Type Automotive Automotive
Pitch / Style 2.54 mm 2.54 mm
Rated Current (ac/dc) 5 A 5 A
Rated Voltage (ac/dc) 14 V 14 V
Remark* / With back cover
Characteristics differ between variants of a connector

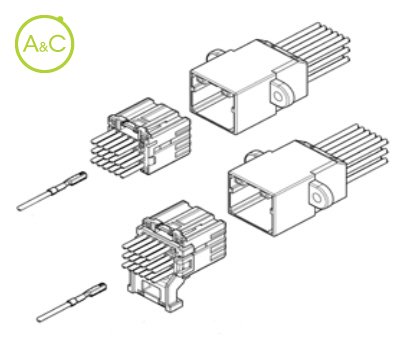

The ARV connector is an unsealed wire-to-wire high performance connector, primarily designed for outside rear view mirror applications. The 0.64-sized terminal offers optimum electrical performance and is available with gold plating, therefore offering excellent conductivity and durability. This automotive connector is available in 12 and 18 circuits. The female housing is available with an optional unique back cover which allows wire routing. The male housing also offers the versatility in being able to be panel mounted. 12 circuits and 18 circuits, wire to wire connection Optional wire routing attachment (to optimise packaging space) Versatile mounting options Latch overstress feature Both female and male connectors utilise independent secondary lock for terminal retention RoHS Compliant
