Top Entry Shrouded Header THT

  • VYH CONNECTOR
Download product sheet

Number Of Poles

  • 2
  • 3
  • 4
  • 6
Article Number B02B-VYHSK-1 B02B-VYHSK-M-1
Number Of Contacts 2 2
Upper Temperature +85 °C +85 °C
Lower Temperature -25 °C -25 °C
General Description 6.5mm Pitch Disconnectable Crimp Style 6.5mm Pitch Disconnectable Crimp Style
Connection Type Printed Circuit Board Connectors Printed Circuit Board Connectors
Pitch / Style 6.50 mm 6.50 mm
Rated Current (ac/dc) 15 A 15 A
Rated Voltage (ac/dc) 300 V 300 V
Pcb Mount Style Through-hole Technology (THT) Through-hole Technology (THT)
Remark* Secure locking device Secure locking device
Extra Information / Not UL approved
Characteristics differ between variants of a connector

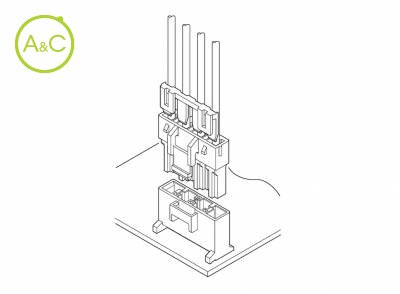

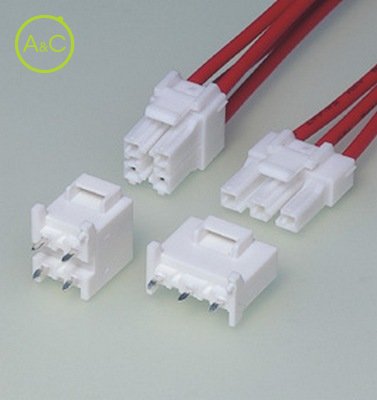

This VYH connector is designed for wire-to-board 6.5mm (.256") pitch connector corresponding to large current. Secondary retainer, which prevents from insufficient insertion of contact and coming off contact. Corresponding to large current Since material of header has superior electrical conductivity, they can correspond to large current. Misinsertion prevention Incorrect insertion is completely prevented by the special polarizing key. Housing lance for contact retention Housing lance provides stable contact retention force and allows the contact to be securely locked into the housing, without being damaged by external forces. Secondary retainer The secondary retainer is optionally available. This retainer ensures that the contacts are fully seated and locked in the housing prevents their accidental release. Installed after the contacts are inserted, the secondary retainer locks and secures the contacts (expect for 41 type contact when AWG #16 wire, and for 61 type contact are used.) Standards UL Recognized E60389 TUV R50036139 RoHS Compliant
