Top Entry Shrouded Header THT High box type

  • PH CONNECTOR
Download product sheet

Number Of Poles

  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
Article Number BH10B-PH
Number Of Contacts 10
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 2mm Pitch Disconnectable Crimp Style
Connection Type Printed Circuit Board Connectors
Pitch / Style 2.00 mm
Rated Current (ac/dc) 2 A
Rated Voltage (ac/dc) 100 V
Pcb Mount Style Through-hole Technology (THT)
Characteristics differ between variants of a connector

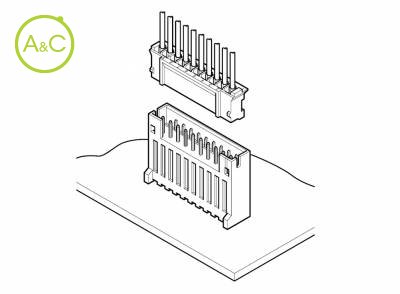

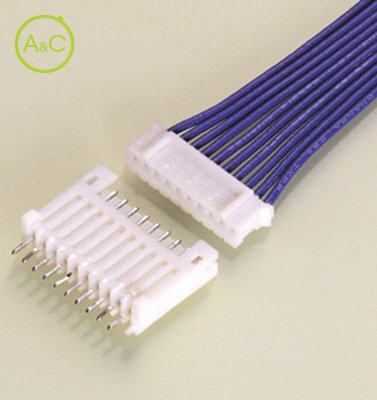

PH connector high-box type, with 17mm (.669") mounting height and with 4.5mm (.177") thickness. The header is designed to accept the PH crimp style or the KR insulation displacement connector receptacles. Interchangeability Designed to accept either PH or KR mating sockets. Standards UL Recognized E60389 CSA Certified LR20812 TUV Certified R75087 RoHS Compliant
