Socket Housing

  • BHS CONNECTOR
Download product sheet

Number Of Poles

  • 2
Article Number BHSR-02VS-1(N)
Number Of Contacts 2
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 3.5mm Pitch Disconnectable Crimp Style (Wire to Board)
Connection Type Printed Circuit Board Connectors
Pitch / Style 3.50 mm
Rated Current (ac/dc) 1.0 A
Rated Voltage (ac/dc) 1,4 V
Pcb Mount Style Surface Mount Technology (SMT)
Characteristics differ between variants of a connector

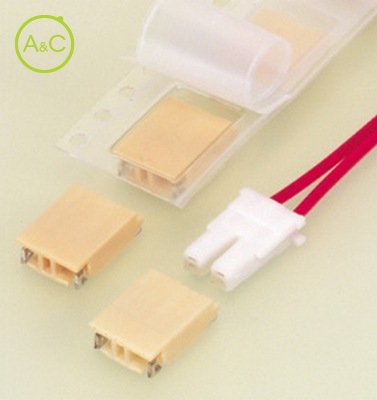

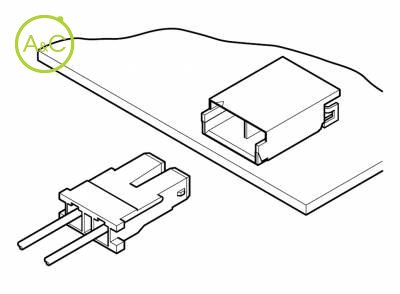

Low profile connectors with high withstanding voltage, designed for connecting liquid crystal display back light lamps to their starters. SMT configuration. It's crimp style contact can be inserted into the housing with little force, thus making them suitable for use with flexible wires such as those insulated with silicone rubber. Low profile Allows liquid crystal displays to be thinner, only 3.2mm (.126"). SMT configuration Shrouded headers are SMT style, suited for high density mounting. The headers feature reinforcing solder tabs to prevent lifting of the header during mating and unmating. Applicable to special wires Its crimp style contact can be inserted into the housing with little force, thus making them suitable for use with flexible wires such as those insulated with silicone rubber. Housing lock also serves as polarizing device The housing lock, which is also designed to be a polarizing device, prevents both misinsertion and accidental disengagement due to vibration or shock. Adopt wide large for socket contact In order to correspond to miniaturization and high voltage, wide large for socket contact is adopted. Standards UL Recognized E60389 CSA Certified LR20812 Wire to Wire Version See link; https://www.jst.co.uk/productSeries.php?pid=180&cat=120 RoHS Compliant
