Contact AWG 22 to 18

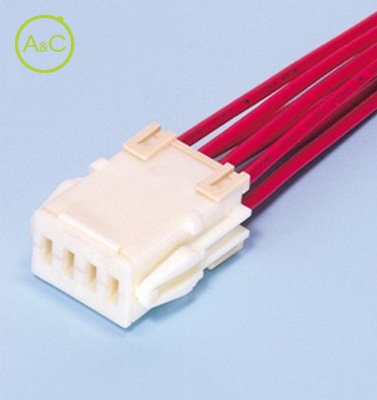

  • BL CONNECTOR
Download product sheet

Applicable Wire

  • AWG 22 to 18
Article Number SSF-21T-P1.4
Upper Temperature +90 °C
Lower Temperature -25 °C
General Description 3.96mm Pitch For short-circuit connection
Applicable Wire Size 0.3 to 0.75 (AWG #22 to #18) mm²
Connection Type Wire to Wire Connectors
Pitch / Style 3.96 mm
Rated Current (ac/dc) 7.0 A
Rated Voltage (ac/dc) 300 V
Characteristics differ between variants of a connector

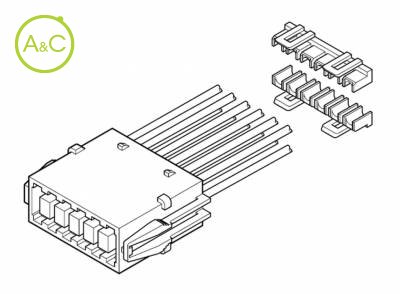

The contacts for short circuit connection are to be mounted in the housing. The panel lock is designed to prevent tangling with wires and accidental breakage because of handling. For short-circuit connection Tab contacts for short-circuit connection are to be mounted in the housing. Housing lance The resilient plastic housing lances secure the contacts in the housing. Since the lances are in the housings rather than on the contacts, they are not affected by handling, and allow the contacts to be lightly inserted without undue force. This establishes a feeling of uniform insertion and a noticeable change in that feeling when insertion is completed. Secondary retainers The secondary retainers enhance safety in case of partial insertion or accidental release of the contact. Even if a contact is inserted incompletely, the retainer guides the contact to the proper position and securely locks it in place. Panel lock construction Our unique compact panel lock is designed to prevent tangling with wires and accidental breakage because of handling. Tab contact built-in type is available Connectors with contacts already built-in can be supplied too, place orders with model numbers exclusively allocated to them. Standards UL Recognized E60389 CSA Certified LR20812 TUV File No. R9651159 RoHS Compliant
