Top Entry Shrouded Header SMT

  • SUH CONNECTOR
Download product sheet

Number Of Poles

  • 2
  • 10
  • 12
  • 20
Article Number BM02B-SURS-TF
Number Of Contacts 2
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 0.8mm Pitch Disconnectable Crimp Style
Connection Type Printed Circuit Board Connectors
Pitch / Style 0.80 mm
Rated Current (ac/dc) 1.0 (WG #28) A
Rated Voltage (ac/dc) 30 V
Pcb Mount Style Surface Mount Technology (SMT)
Characteristics differ between variants of a connector

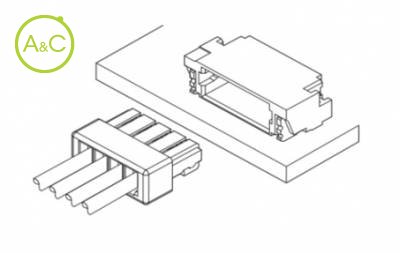

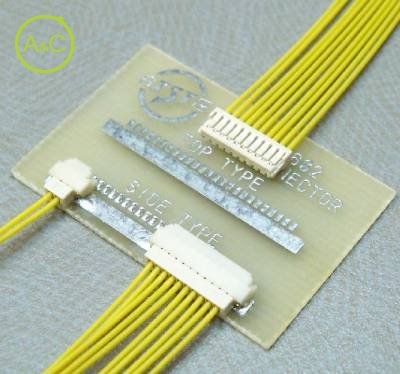

This connector was developed for use with the crimping type SUR header which was designed for the 0.8mm pitch IDC wire to board connector. The SUH connector adopted the first crimping method in a minimum 0.8mm pitch of the wire to board type connector. Housing lance method provides the good workability and a construction contact method provides the excellent contact reliability. SUR header in common use Sharing header with IDC type SUR connector, the degree of freedom of designing the variegated routing harness on PCB is improved. Current rating 1.0A By designing the applicable wire range to be AWG#28, the electric current of 1.0A can be applied to the connector. Miniaturisation Side entry: Mounting height 1.75mm depth 4.1mm Top entry: Mounting height 4.15mm depth 2.25mm Comparing with 1.0mm pitch crimping type SH connector, approximately 44% in the occupation area of PCB reduced in the side entry type header. RoHS Compliant
