Header SMT Normal

  • PC Card Connector C Type
Download product sheet

Number Of Poles

  • 68
Article Number ICM-C68H-SS1A-4104 ICM-C68H-SS1A-4109T
Number Of Contacts 68 68
Upper Temperature +85 °C +85 °C
Lower Temperature -40 °C -40 °C
General Description PCMCIA Card Connector C Type (1.25mm Pitch) PCMCIA Card Connector C Type (1.25mm Pitch)
Connection Type Printed Circuit Board Connectors Printed Circuit Board Connectors
Pitch / Style 1.27 mm 1.27 mm
Rated Current (ac/dc) 0.5 A 0.5 A
Pcb Mount Style Surface Mount Technology (SMT) Through-hole Technology (THT) Surface Mount Technology (SMT) Through-hole Technology (THT)
Remark* / With solder tab
Characteristics differ between variants of a connector

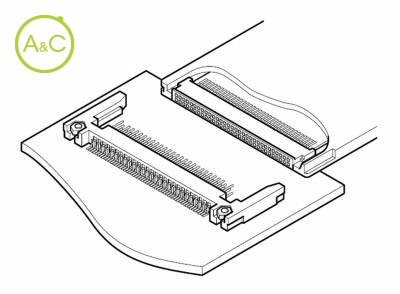

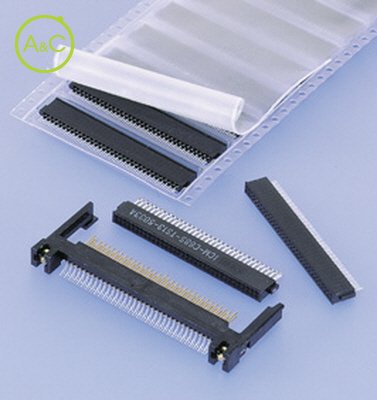

Socket and header which have 68 double-row circuits, conforming to PCMCIA (USA) and JEIDA Ver.4.1 (Japan). Type I cards, type II cards, and type III cards, can be used. The socket contact has two contact points, which provides low insertion force and high contact reliability. (10,000 mating cycles is guaranteed.) Header pins are designed to be protected against static electricity. Easy inspection and touch-up after reflow soldering The SMT type header is 0.635mm(.025")pitch, with single row solder tails positioned so that inspection and touch-up after reflow soldering is easy. Socket Two mounting methods, dual row straddle type and in line SMT type with variation of PC board offset distance. Newly lined up springy grounding pin type socket provides easy but stable grounding circuit connection between PC board to metal section of card frame by springy No.1 and No.35 grounding pins. Applicable to low-voltage (3.3V) card Headers for type III cards have a groove to be applicable to the low-voltage (3.3V) cards. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
