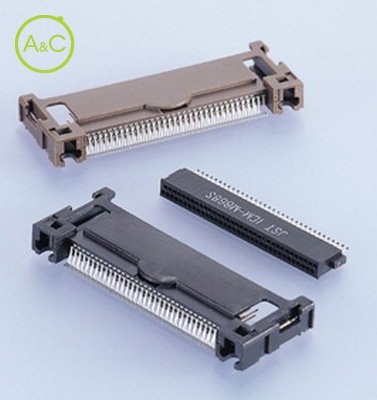

Socket for small PC card Connector

  • Small PC Card Connector MB Type

Number Of Poles

  • 68
Article Number ICM-MB68S-TS13-5000A
Number Of Contacts 68
Upper Temperature +85 °C
Lower Temperature -40 °C
General Description Small PC Card Connector MB Type (1.0mm Pitch)
Connection Type Printed Circuit Board Connectors
Pitch / Style 1.00 mm
Rated Current (ac/dc) 0.5 A
Pcb Mount Style Surface Mount Technology (SMT) Through-hole Technology (THT)
Characteristics differ between variants of a connector

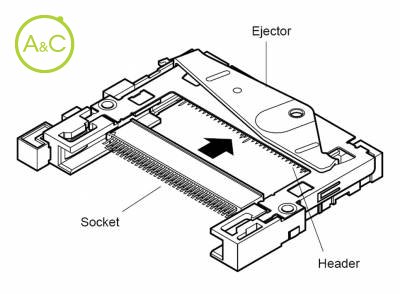

1.0mm (.039") pitch 68-circuit dual-row connector for small PC card, conforming to PCMCIA/JEIDA standard. Socket Socket is of straddle-type, designed to accommodate PC board between the two solder tail rows. Header Header is with stand-off 0mm, available in both normal and reverse types. Ejector Ejector is, with the left button, to be assembled (with SCrews) after header is mounted. The frame has the contact point for the grounding clip on the small PC card. RoHS Compliant
