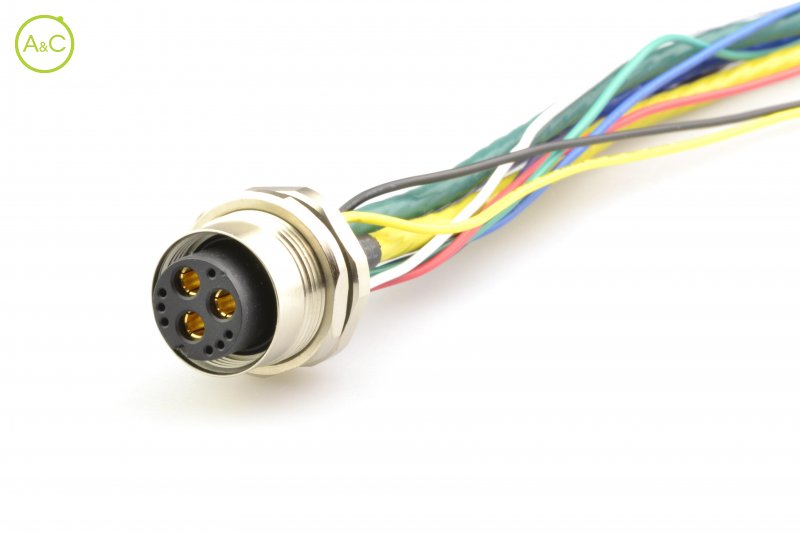

Female panel mount connector

Number Of Poles

  • 10 (3+7)
Article Number L1019DM R 03 BY 0300
Color Black

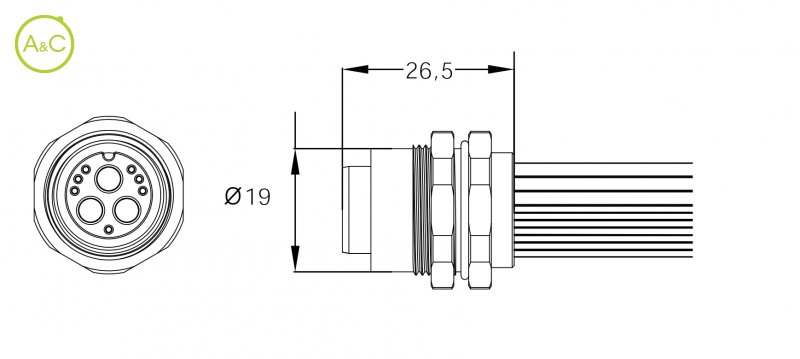

Connector Diameter 19 mm
Wire Section 3 x 5,3 + 7 x 0,14 mm²
Cable Length 300 mm
Protection Degree IP67
Mating Cycles 200 times
Upper Temperature 80 °C
Lower Temperature -25 °C
Rated Voltage 48 V AC / 60 V DC
Max. Contact Resistance ≤10 mΩ
Material Of Contact Phosphor Bronze
Insulation Wire PVC
Remark *Rated current: 45A / 2A, 2 power pin loaded 40A / 2A, 3 power pin loaded Other cable length/type on request
Rated Current *45 / 2 A
Max. Insulation Resistance ≥20 MΩ
Contact Plating Gold plated
Characteristics differ between variants of a connector
