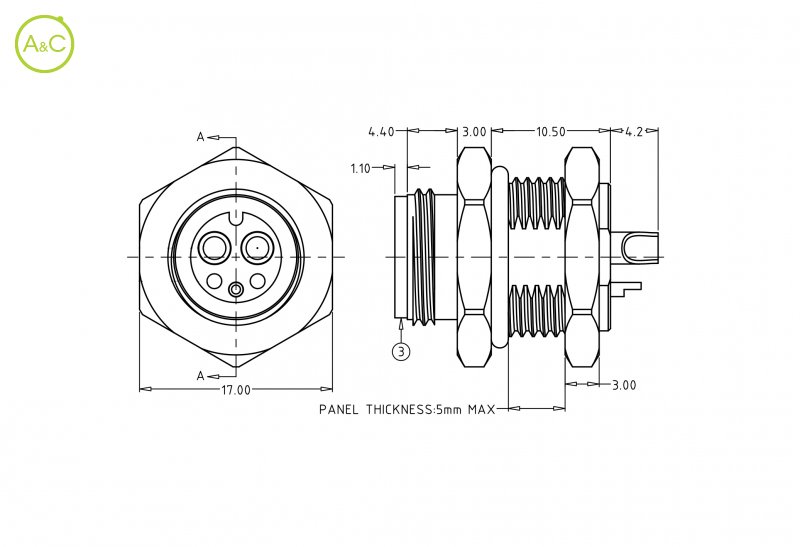

Female panel mount connector

  • Solder cup contacts
Download product sheet Download step file

Number Of Poles

  • 5 (2+3)
Article Number L513AM C 02 00 0000
Color Black
Connector Diameter 13 mm
Protection Degree IP67
Mating Cycles 200 times
Upper Temperature 80 °C
Lower Temperature -25 °C
Rated Voltage 48 V AC / 60 V DC
Max. Contact Resistance ≤10 mΩ
Material Of Contact Phosphor bronze
Remark Other cable length/type on request
Rated Current 20 / 2 A
Max. Insulation Resistance ≥20 MΩ
Contact Plating Gold over Nickel
Contact Type Solder cup contacts
Characteristics differ between variants of a connector
