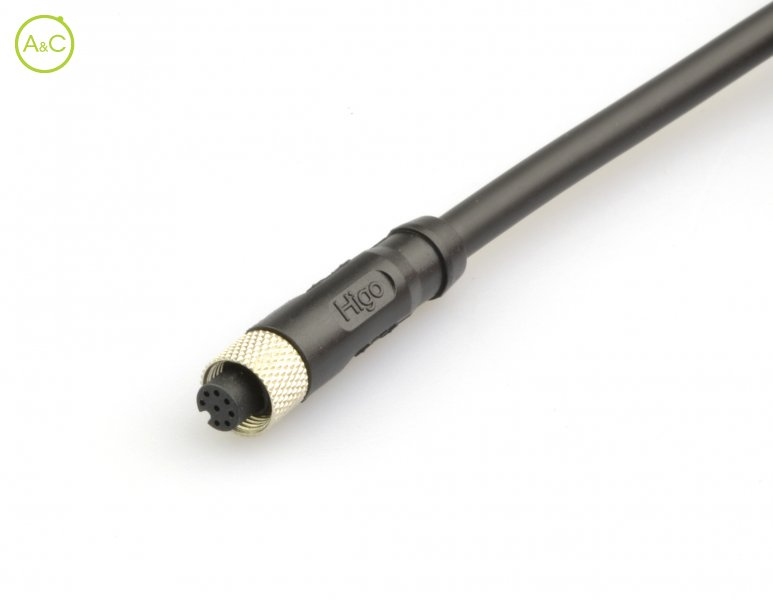

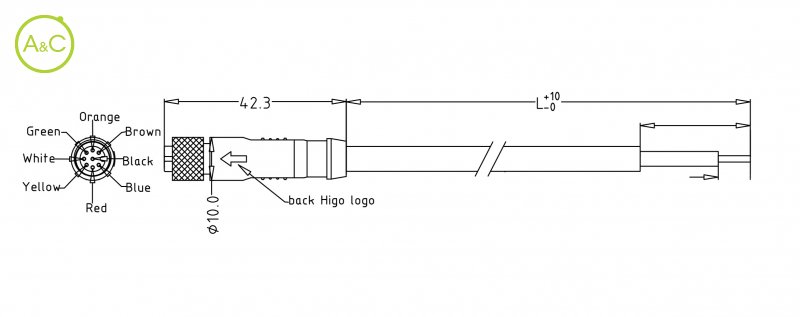

8P Mini C Female cable connector

Download product sheet

Number Of Poles

  • 8
Article Number L810CM P 00 A5 1000
Color Black
Connector Diameter 10 mm
Wire Section 0.2 mm²
Cable Length 1000 mm
Protection Degree IP67
Mating Cycles 200 times
Upper Temperature 80 °C
Lower Temperature -25 °C
Rated Voltage 48 V AC / 60 V DC
Max. Contact Resistance ≤10 mΩ
Material Of Contact Phosphor Bronze
Cable Diameter 5.8 mm
Insulation Wire PVC
Remark Other cable length/type on request
Rated Current 2 A
Max. Insulation Resistance ≥20 MΩ
Contact Plating Gold over Nickel
Fitting Length 80 mm
Material Jacket PVC
Characteristics differ between variants of a connector
